Bidet Toilet Seat / Model B04

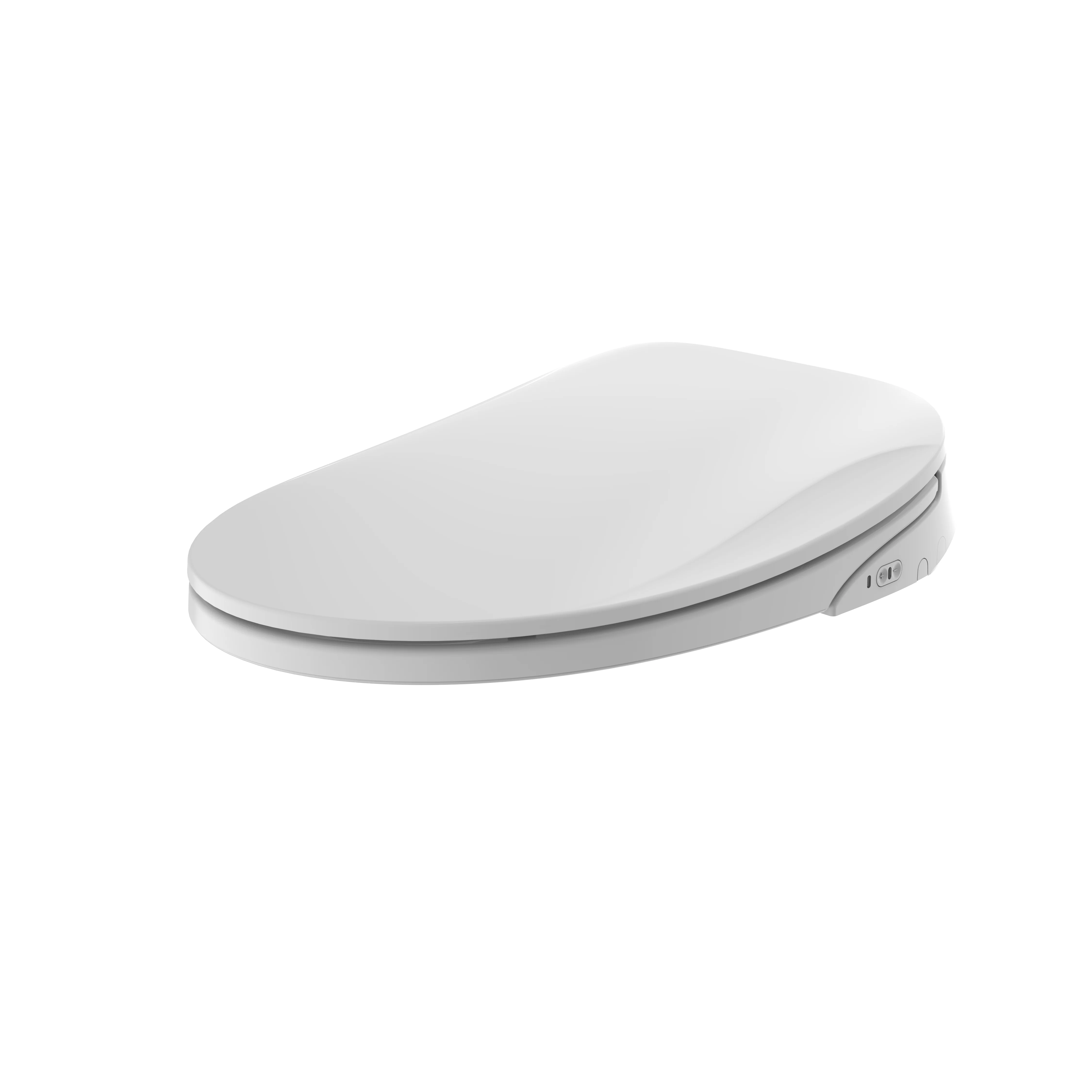

B04 Electric Bidet Seat
Elongated electric bidet seat with side-knob washing control, soft-close lid and model-dependent warm-air drying.
- Voltage
- 100–130V AC / 50–60Hz
- Controls
- Side knob
- Dimensions
- 513 × 396 × 103 mm
- 3.3 kg net weight
- IPX4 waterproof rating
- 1260 W rated / ≤1800 W maximum power
Product overview
Built for informed sourcing
The B04 is an elongated electric bidet seat for compatible existing toilets. A side knob starts rear or front washing and adjusts the water volume; the adjacent buttons adjust water, drying and seat temperature settings. The upper seat closes softly, and a seat sensor controls the in-use functions.
The documented configuration uses 100–130V AC at 50/60Hz, 0.07 MPa dynamic to 0.75 MPa static water pressure and 4–35 °C supply water. The B04 series includes rear and front washing, a four-level seat temperature setting, three-level water temperature adjustment, LED night light and IPX4 protection. Warm-air drying is marked as model-dependent in the manual.
Engineering details
Features & engineering
Review the documented design, control and comfort details for this configuration.
Rear and front washing
The side knob starts rear or front washing and regulates the water volume. Water temperature has three adjustment levels when powered.
Heated seat with four settings
Seat temperature can be adjusted across four levels, including heating off. A sitting sensor enables the in-use controls.
Model-dependent warm-air drying
Some B04 models include warm-air drying with three air-temperature levels; the manual identifies this function as model-dependent.

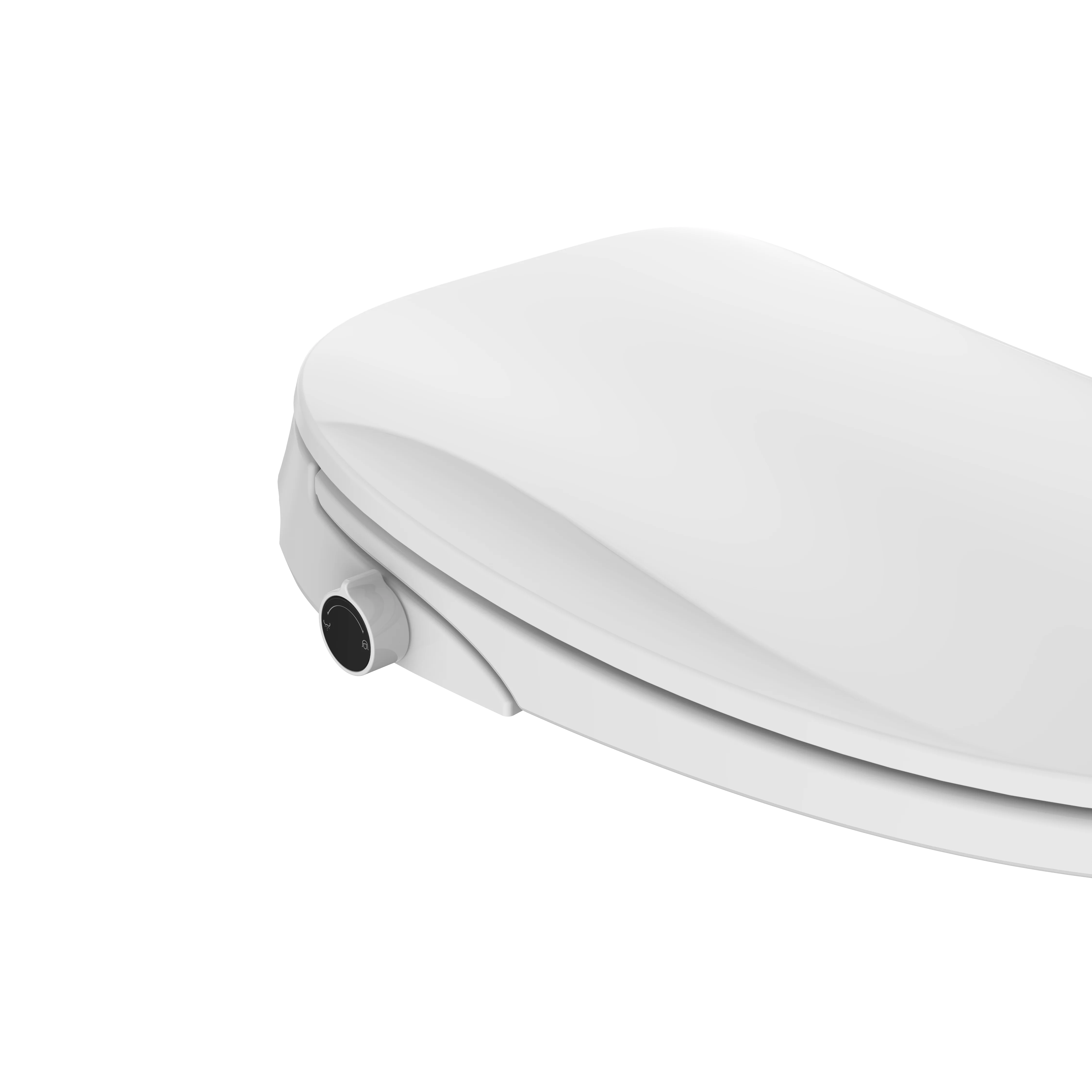

Side control and soft close
The integrated knob and buttons provide local control, while the upper seat uses a soft-close mechanism.
IPX4 enclosure and LED night light
IPX4 protection and an LED light source are documented in the product parameters for bathroom installation planning.
Compatible-toilet upgrade format
Fast-mounting hardware, a side water inlet, inlet hose and tee-junction support installation on a compatible existing toilet pan.
Planning data
Technical specifications
Confirm destination-market requirements and the final approved configuration before ordering.
| Product type | B04 series electric bidet seat |
|---|---|
| Overall product size | 513 × 396 × 103 mm (20.20 × 15.59 × 4.06 in) |

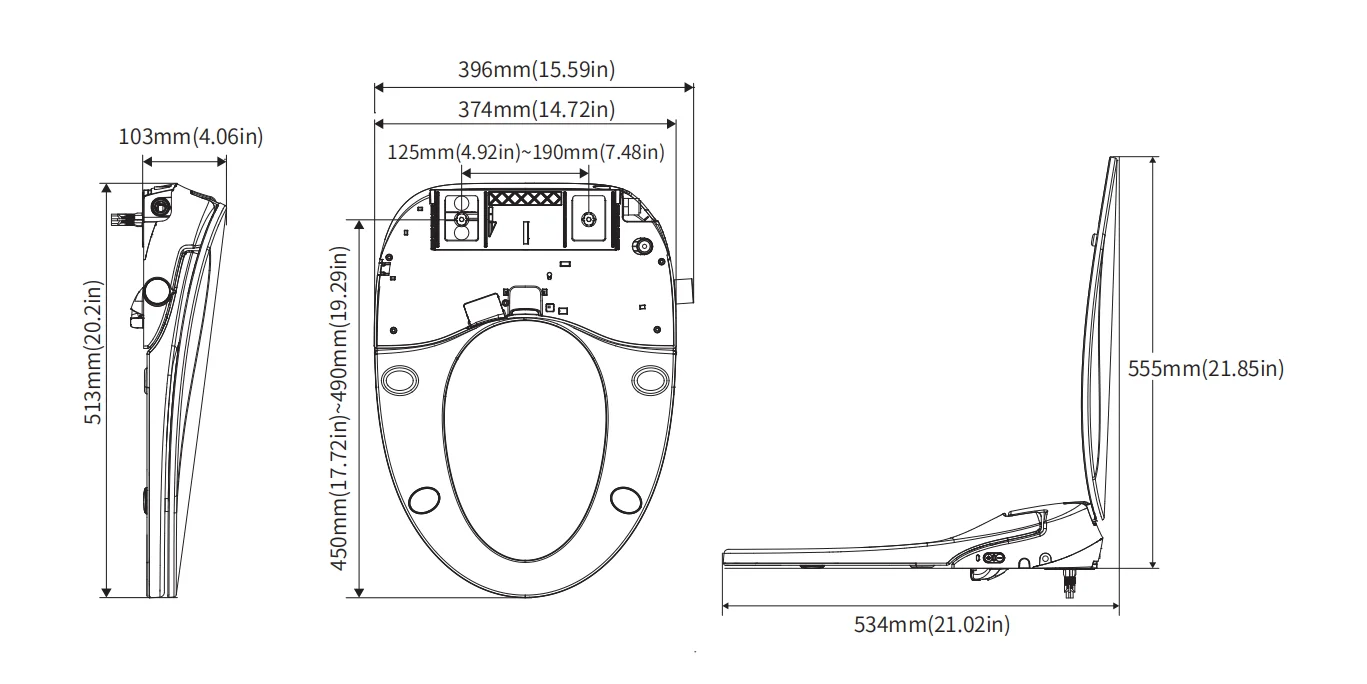

| Seat width shown in dimension drawing | 374 mm (14.72 in) |
| Open-lid length / height | 534 mm / 555 mm |
| Installation adjustment range | 125–190 mm |
| Package dimensions | 585 × 450 × 180 mm |
| Net / gross weight | 3.3 kg / 5.5 kg |
| Shape | Elongated |
| Power supply | 100–130V AC, 50/60Hz (manual); 110–130V listing configuration |
| Rated / maximum power | 1260 W / ≤1800 W |
| Water supply pressure | 0.07 MPa dynamic – 0.75 MPa static |
| Supply water temperature | 4–35 °C / 39.2–95 °F |
| Ambient temperature | 3–40 °C / 37.4–104 °F |
| Water effluent temperature | Approx. 32–42 °C / 89.6–107.6 °F |
| Seat surface temperature | Room temperature to approx. 41 °C / 105.8 °F |
| Drying temperature | Approx. 32–57 °C / 89.6–134.6 °F (some models do not include drying) |
| Waterproof rating | IPX4 |
| Material | PP-V0, POM and ABS |
| Maximum flow rate | 0.19 gal/min (720 ± 30 ml/min at the stated test condition) |
| Sound level | ≤ 50 dB |
| Upper seat closing | Soft close |

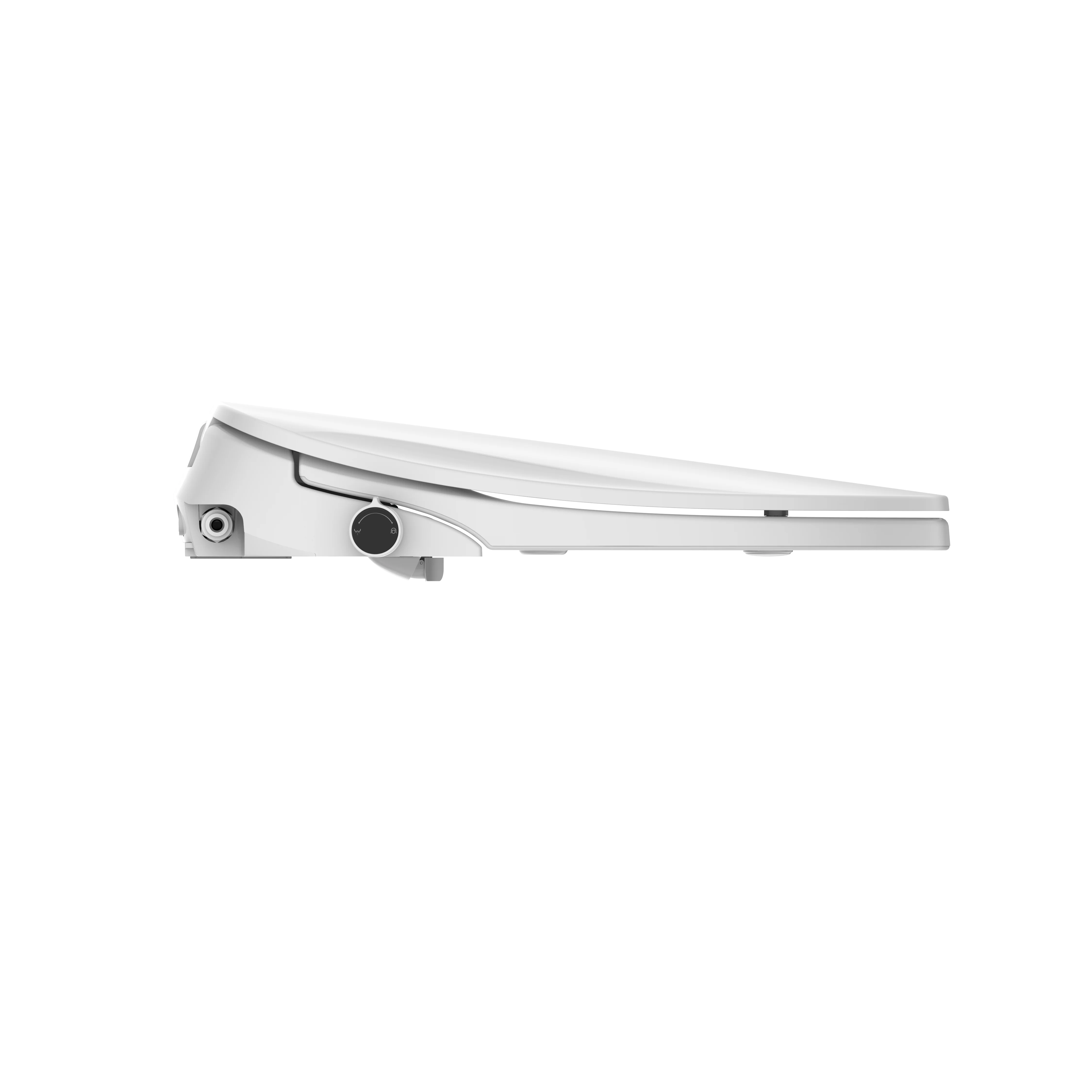

| Water inlet | From side; inlet diameter 13.1 mm |
| Included components | Fast mounting plate, adjustment sheet, expansion screw components, water inlet hose, tee-junction component and instruction manual |
| FCC document scope | B041 model reference and B041-01 through B046-03 variants |
Function set
Comfort functions
Included functions are separated from configuration-dependent options.
Documented as included
- Heated seat
- Night light
Conditional features — confirm availability
- Warm-air dryingModel-dependent
Technical library
Document centre
Download the available B04 product files.
Evidence boundary
Documentation you can review before approval
Product details reflect the available model record. Confirm final configuration, certificates and market applicability with the supply team.
