Bidet Toilet Seat / Model T1

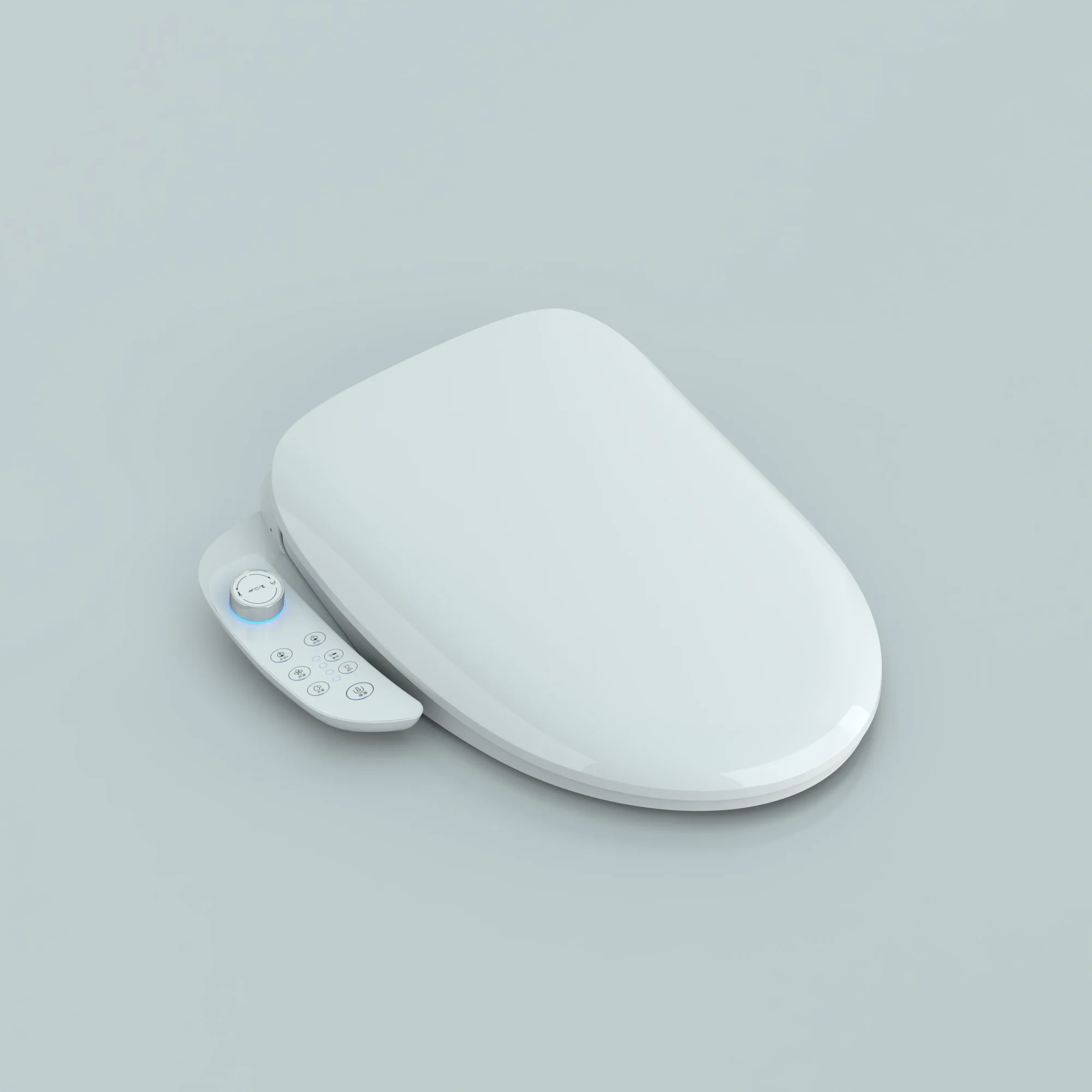

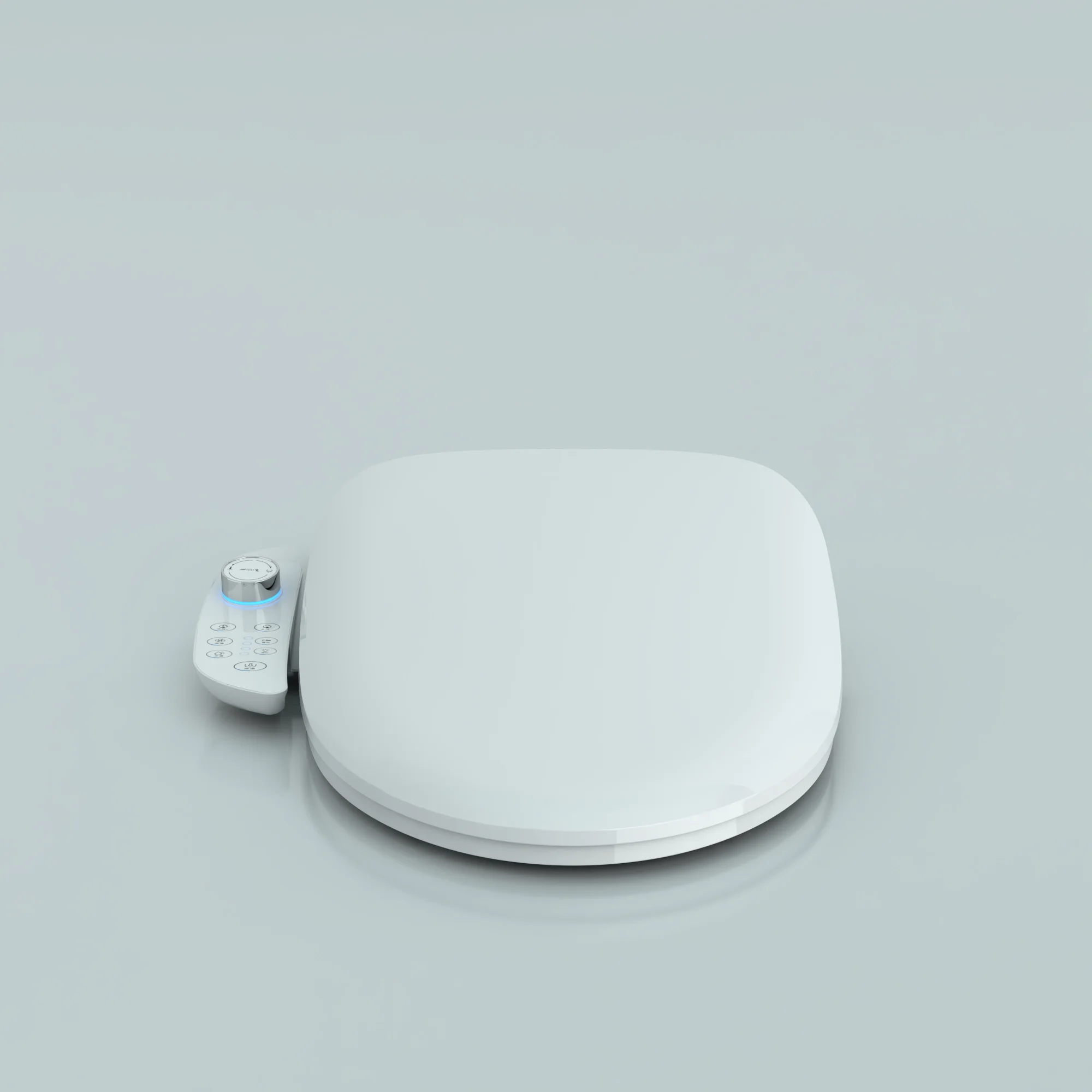

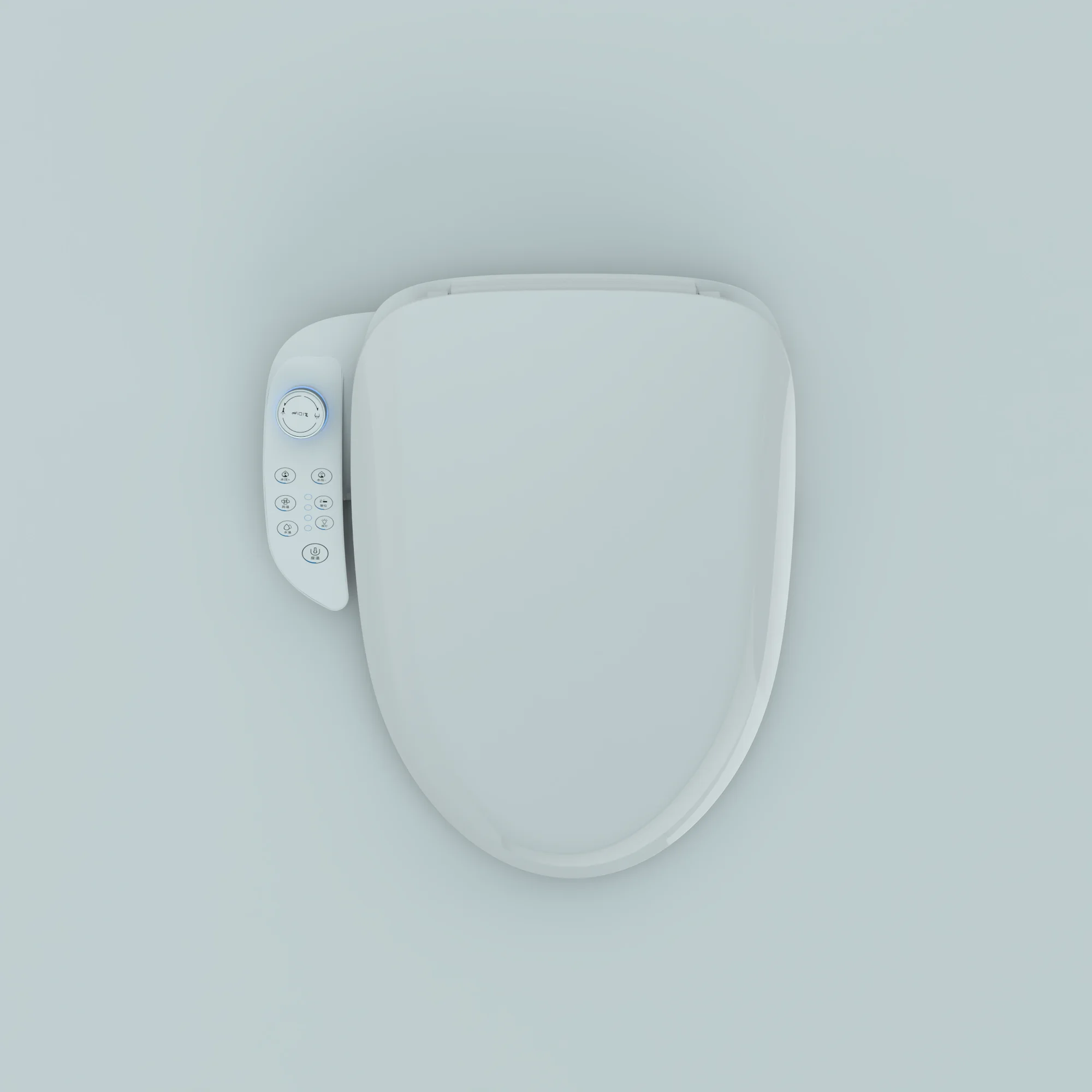

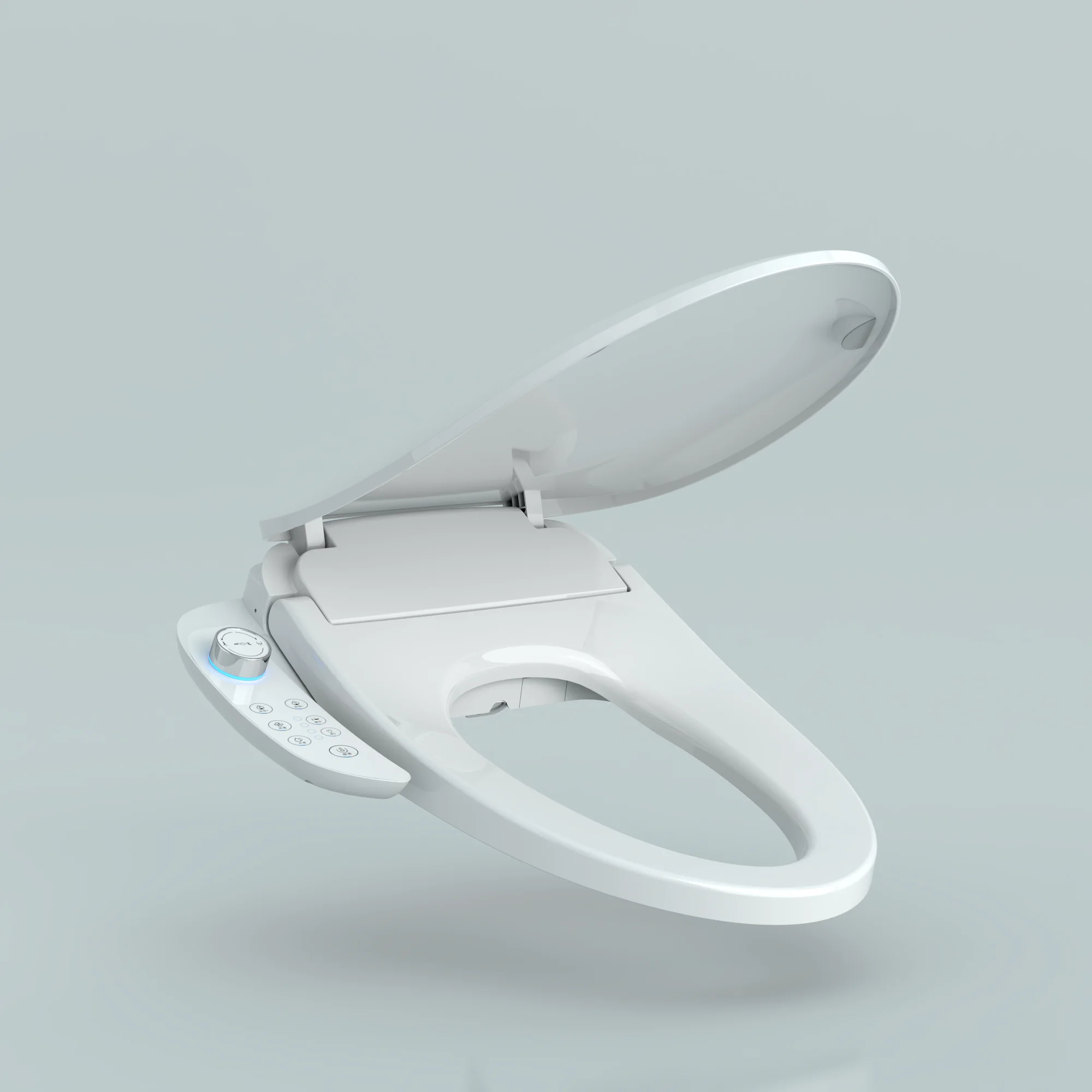

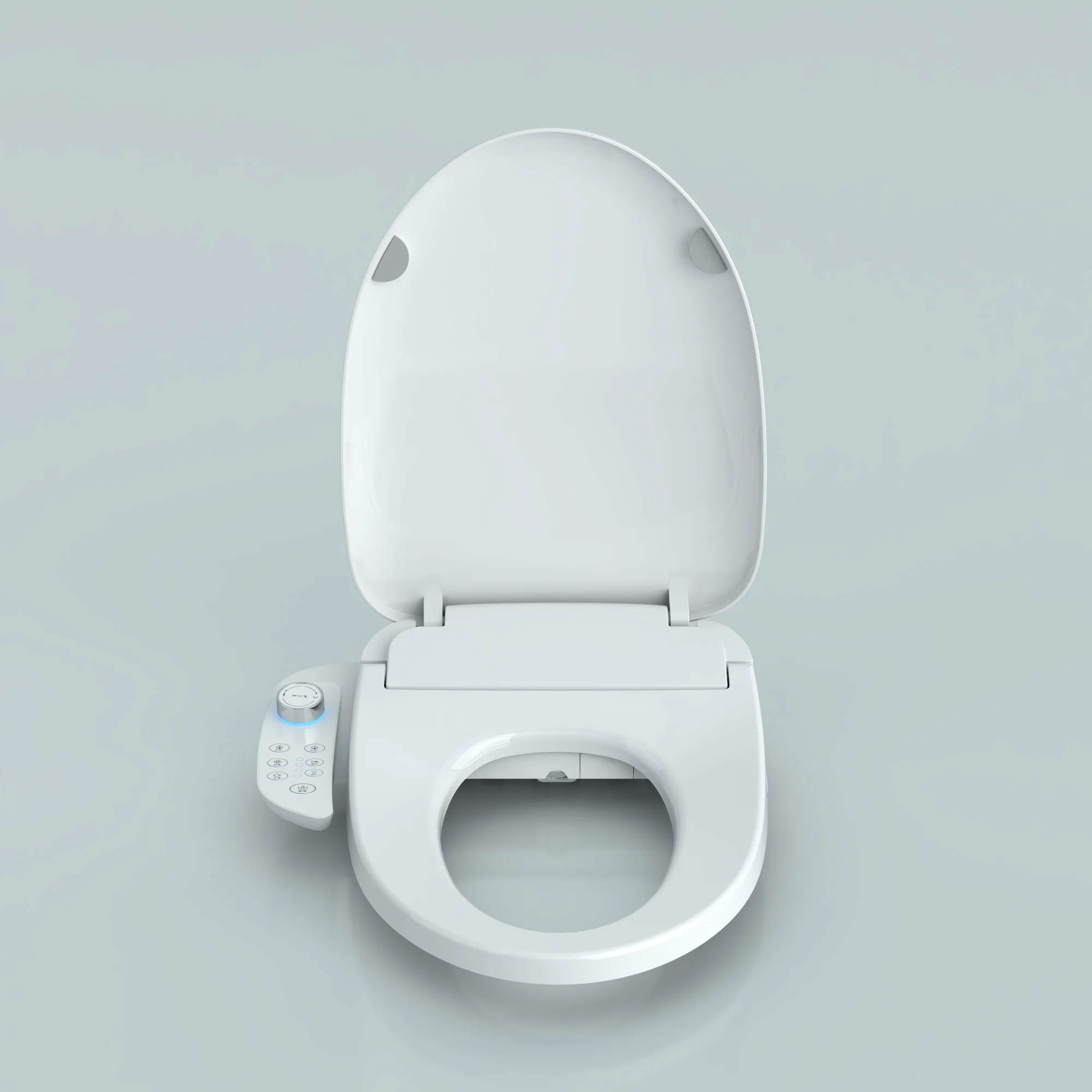

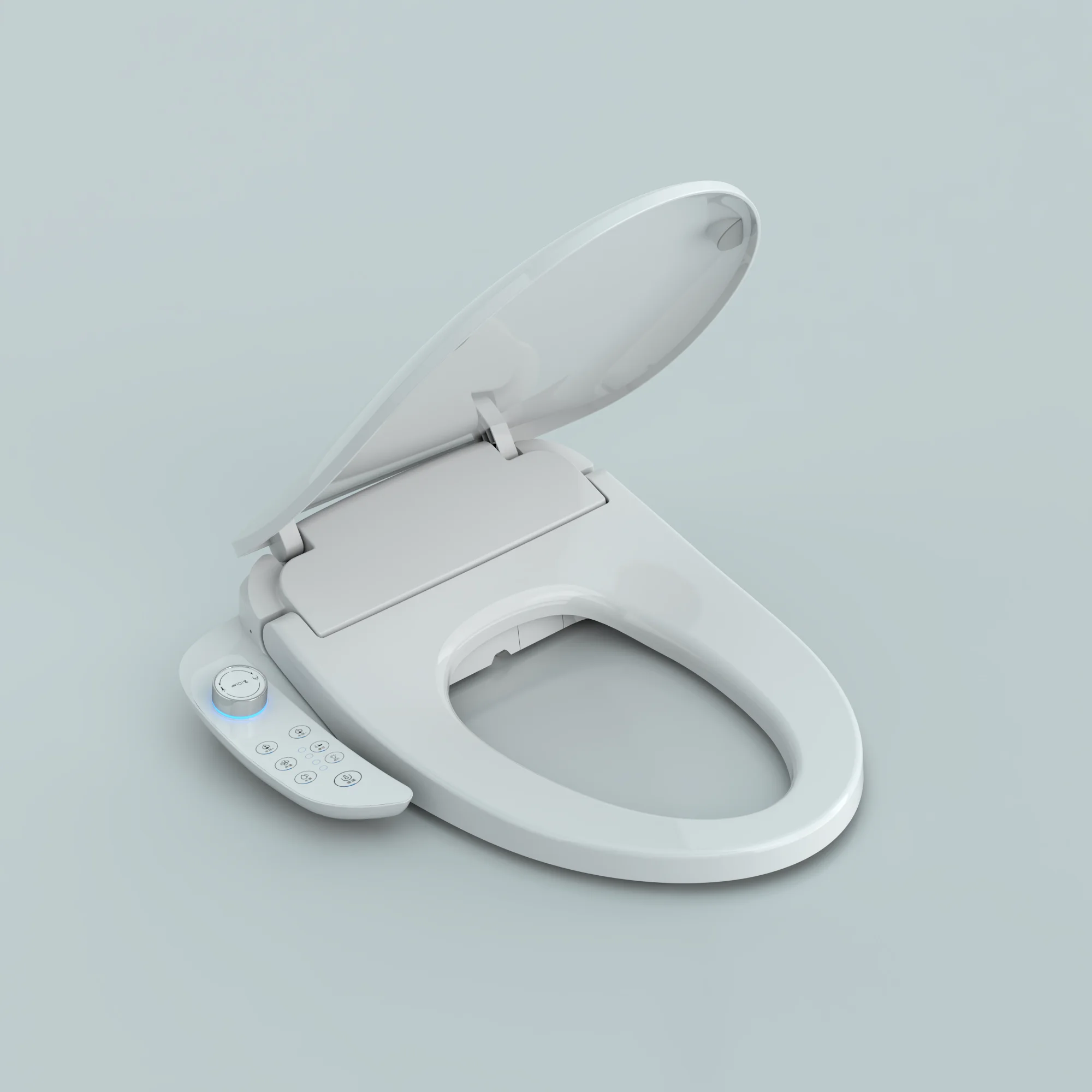

T1 Bidet Toilet Seat
A V-shaped upgrade seat with instant water heating, adjustable washing and a direct side-control experience.
- Voltage
- 110V AC · US plug
- Controls

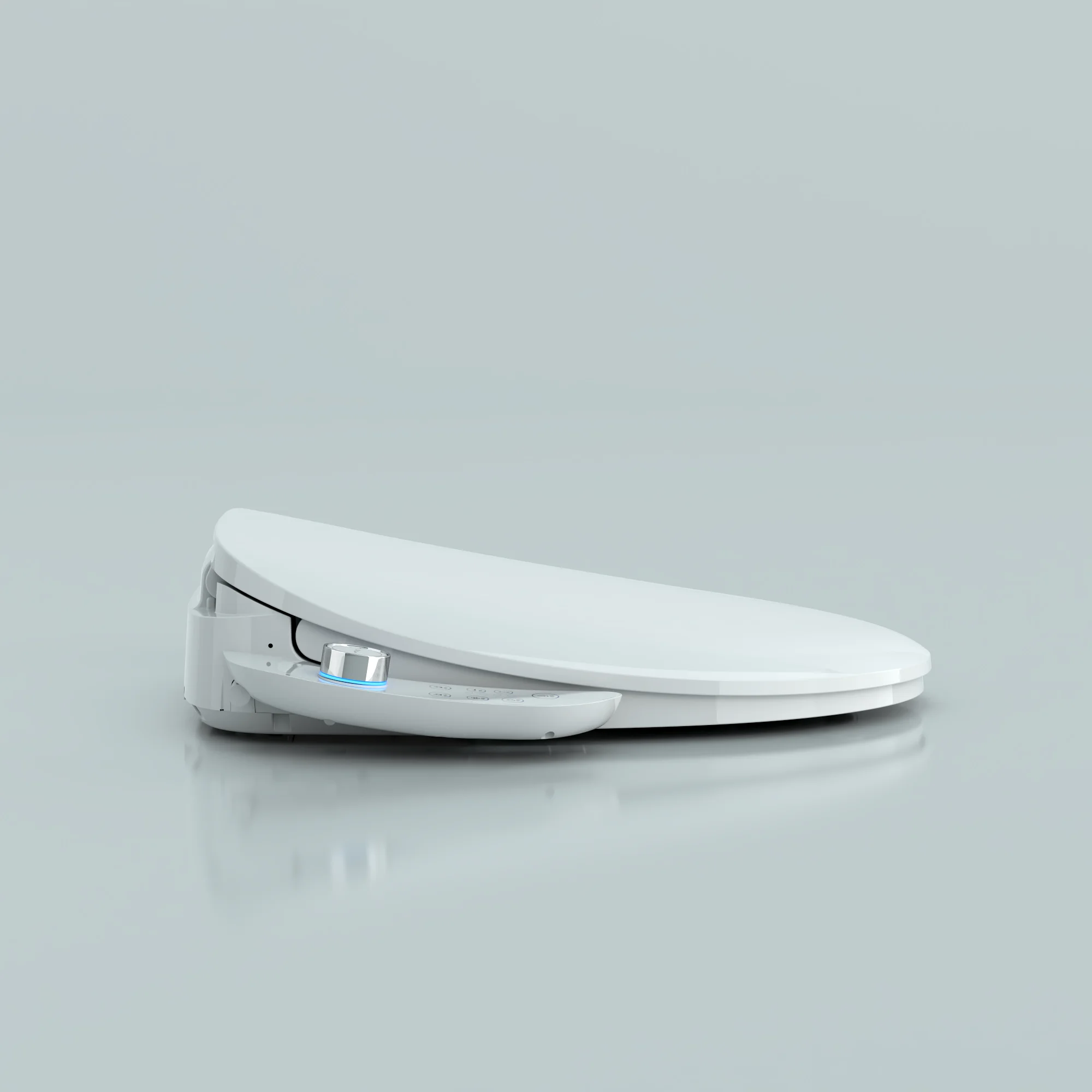

- Side panel
- Dimensions
- 495 × 435 × 115 mm
- 3.9 kg net weight
- 1 pc / carton
- V-shaped upgrade format
Product overview
Built for informed sourcing

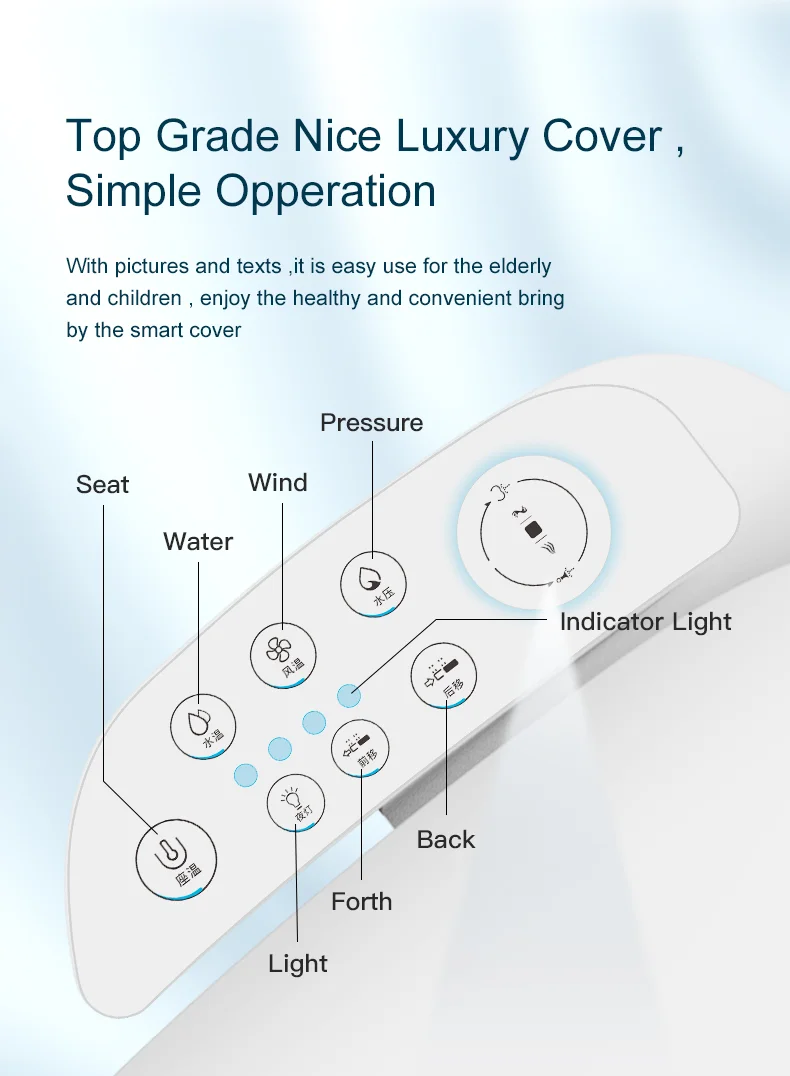

The T1 is a V-shaped bidet toilet seat for bathroom upgrades where the existing ceramic toilet remains in place. Its side control panel combines hip washing, female washing, moving wash, warm-air drying, seat heating, instant water heating and night-light operation.
The product sheet lists a 110V AC US-plug configuration, ABS housing, 495 × 435 × 115 mm product dimensions and 3.9 kg net weight. One unit is packed per carton, with a 575 × 180 × 520 mm package size.

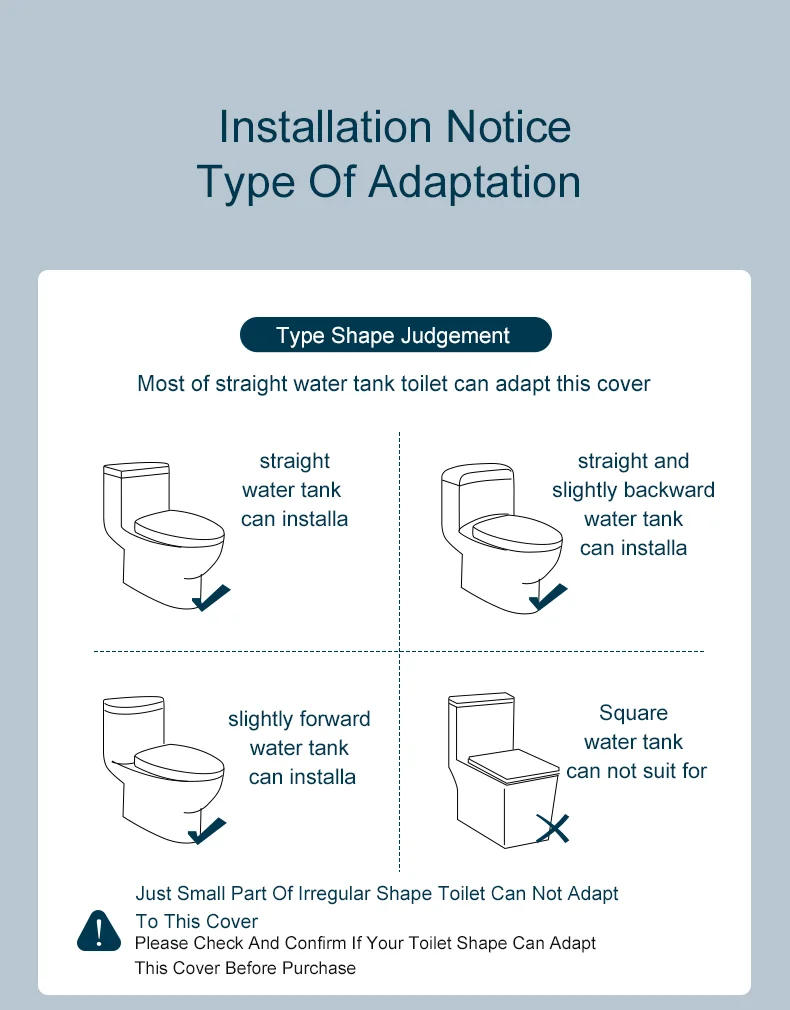

Fitment should be checked before sampling or order approval. The supplied guide covers straight, slightly forward and slightly backward water-tank toilets; square tanks are not suitable. Confirm the three bowl and mounting measurements and the nearby power and water connections for the destination bathroom.
Installation review
Check toilet fitment before approval
T1 is designed for many straight or slightly angled water-tank toilets. Use the guide below to confirm the ceramic shape, mounting holes and bathroom connections before sampling or ordering.
- Front-to-tank length
- > 49 cm
- Tank to mounting hole
- > 2.8 cm
- Mounting-hole centre distance
- 13.5–18 cm
- Nearby power socket
- Within approx. 1.5 m
- Nearby water inlet valve
- Within approx. 0.5 m
- Straight, slightly backward and slightly forward water-tank shapes are shown as adaptable in the supplied guide.
- Square water-tank toilets and some irregular ceramic shapes are not suitable; confirm the real toilet photo when the shape is unclear.
- The final electrical and installation pack should be matched to the destination market before order approval.
Engineering details
Features & engineering
Review the documented design, control and comfort details for this configuration.
Hip, female and moving wash
Separate hip and female washing programmes support moving wash, with adjustable spray position and water pressure.
Instant water heating
Instant heating supplies washing water on demand, with four temperature settings from room temperature to approximately 99 °F.

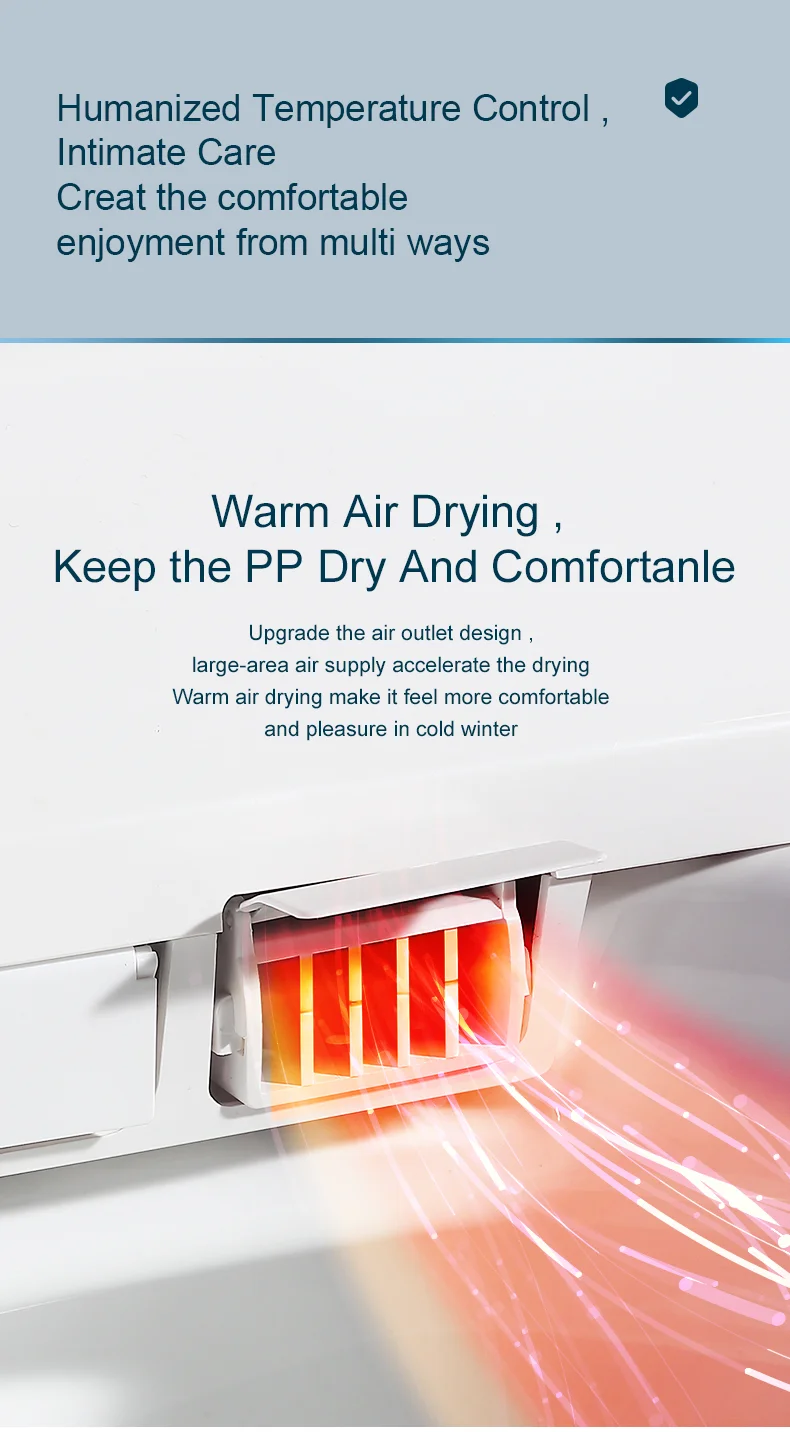

Warm-air drying
Warm-air drying uses four temperature settings and stops automatically after the timed drying cycle described in the manual.

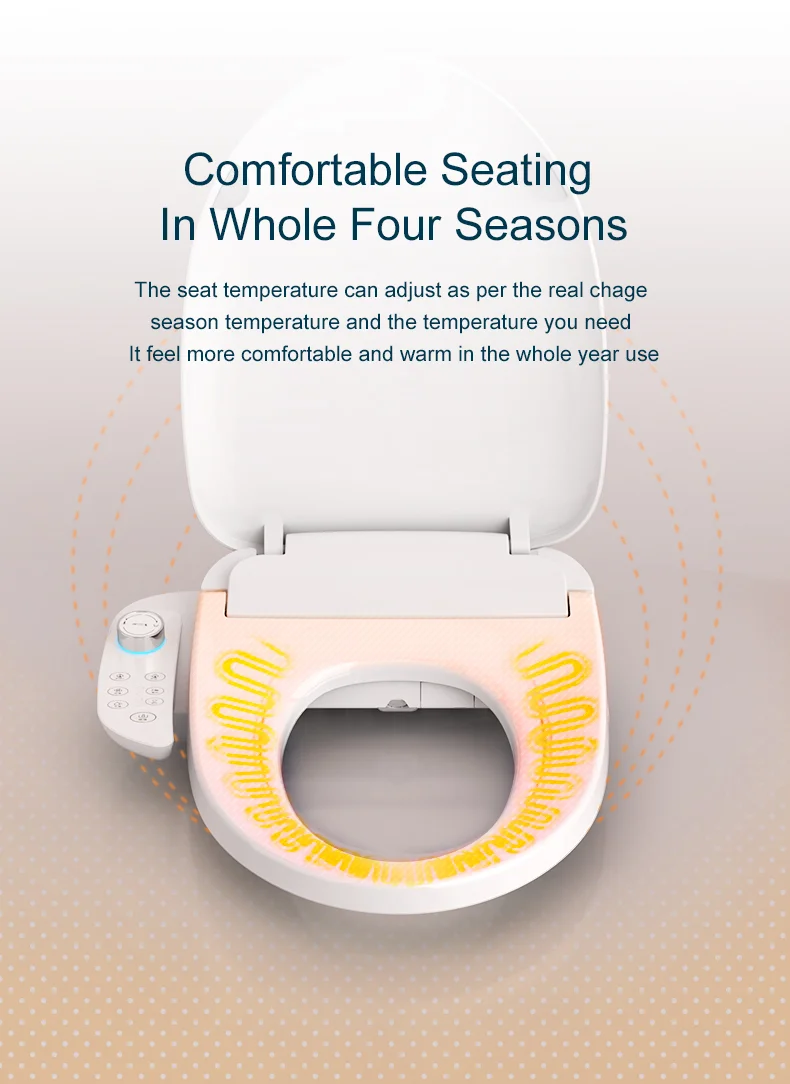

Heated seat and seat sensing
Seat sensing enables the wash functions only when seated, while four seat-temperature levels support year-round use.
Self-cleaning nozzle

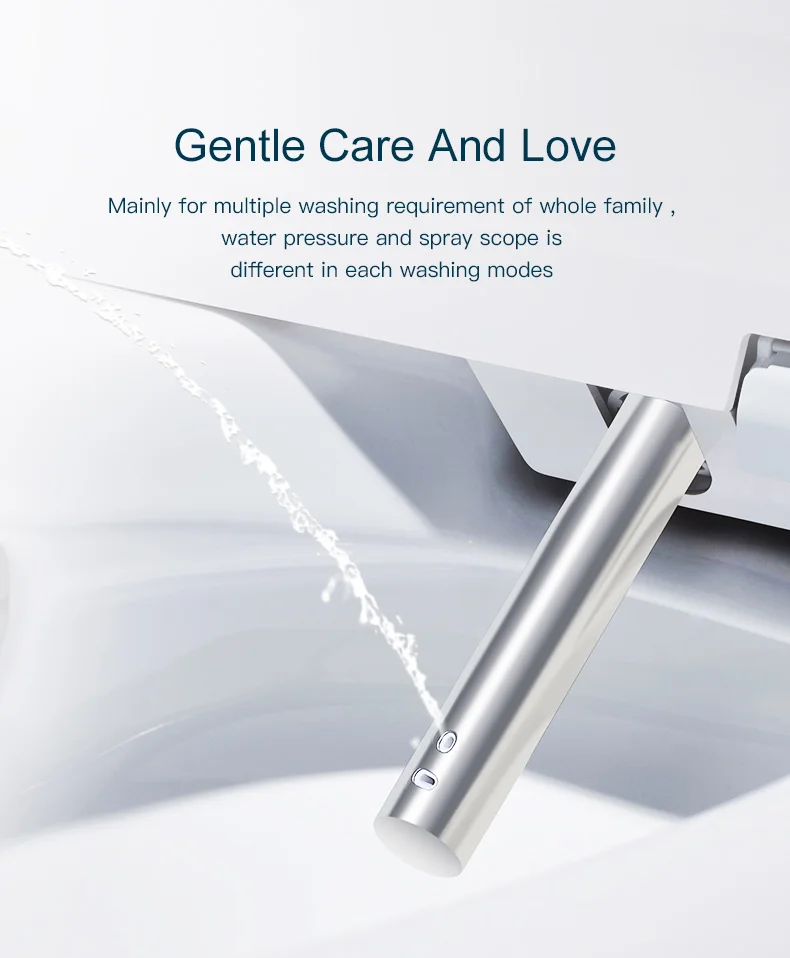

The stainless steel nozzle supports self-cleaning after use and adjustable forward/backward position during washing.
Protection for bathroom use
The material and control package includes ABS construction, IPX4 water protection, leakage protection and 12V safety voltage.
Planning data
Technical specifications
Confirm destination-market requirements and the final approved configuration before ordering.
| Product type | V-shaped bidet toilet seat |
|---|---|
| Product dimensions | 495 × 435 × 115 mm |
| Package dimensions | 575 × 180 × 520 mm |
| Net / gross weight | 3.9 kg / 4.72 kg |
| Packing quantity | 1 pc / carton |
| Material | ABS |
| Power supply | 110V AC · US plug |
| Rated power | 1200 W |
| Water inlet temperature | 4–35 °C / 39.2–95 °F |
| Water pressure | 0.06–0.75 MPa |
| Water flow | Approx. 750 ml/min; washing outlet approx. 700 ml/min |
| Water temperature | Room temperature, 93 °F, 96 °F or 99 °F · 4 levels |
| Seat temperature | Room temperature, 93 °F, 96 °F or 99 °F · 4 levels |
| Warm-air temperature | Room temperature, 93 °F, 96 °F or 99 °F · 4 levels |
| Seat sensing | Yes |
| Safety functions | Leakage protection · 12V safety voltage · flame-retardant material |
| Water protection | IPX4 |
| Included components | Manual, fixing plate, adjustment pieces, bolts/nuts, water inlet pipe assembly and filter |
Function set
Comfort functions
Included functions are separated from configuration-dependent options.
Documented as included
- Female washing
- Hip washing
- Moving wash
- Self-cleaning nozzle
- Heated seat
- Warm-air drying
- Instant heating
- Night light
- Seat sensor
- Temperature control
Technical library
Document centre
Download the available T1 product files.
Evidence boundary
Documentation you can review before approval
Product details reflect the available model record. Confirm final configuration, certificates and market applicability with the supply team.
