Smart Toilet / Model 6293
6293 Integrated Smart Toilet
A U-shaped 110V integrated smart toilet with automatic lid operation, instant heating and adjustable washing, drying and temperature controls.
- Voltage
- 110V AC ±10% · 50/60Hz
- Controls
- Remote control, Side knob
- Rough-in / fit
- 300 mm
- Dimensions
- 700 × 400 mm footprint · 450 / 465 mm height across source files
- 4.8 L flush volume · 40 kg net
- 300 mm rough-in
- 110V AC ±10% · 50/60Hz
Product overview
Built for informed sourcing
The 6293 is a U-shaped integrated smart toilet controlled by a wireless remote and side rotary knob. The supplied manual documents hip and female washing, moving wash, warm-air drying, instant water heating, nozzle self-cleaning, night light, seat sensing, automatic flushing and foot-sensor operation for the lid and flush.

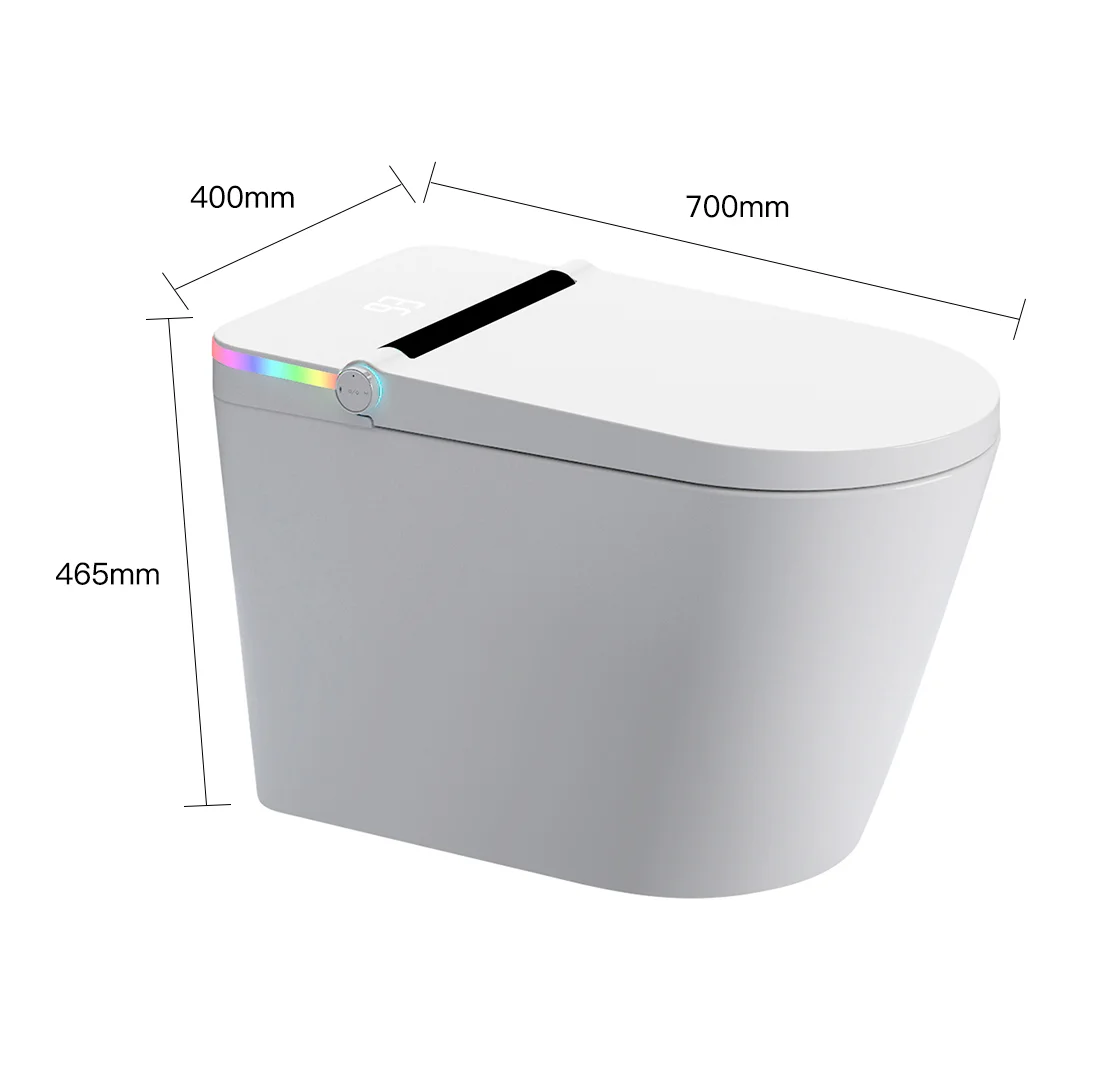

The product parameter sheet lists a 700 × 400 × 450 mm product size, 40 kg net weight, 300 mm rough-in, 4.8 L flush volume and 110V power. The separate dimension image shows a 465 mm height, so the final dimensional drawing should be confirmed before approval.
The manual documents 0.06–0.75 MPa static pressure with a water tank and 0.15–0.75 MPa without one, four temperature levels for water, seat and wind, approximately 750 ml/min total water flow, 40 W seat heating and power-failure flushing. Built-in aromatherapy deodorization and a digital display are also listed in the product materials.
Installation review
Confirm dimensions, rough-in and electrical conditions before approval
Use the 300 mm rough-in and 110V electrical requirement as the starting point, then reconcile the two supplied height values with the final drawing before sampling or ordering.
- Product footprint
- 700 × 400 mm
- Product height
- 450 mm in parameter sheet; 465 mm in dimension image
- Rough-in
- 300 mm
- Water pressure
- 0.06–0.75 MPa with tank; 0.15–0.75 MPa without tank
- Power
- AC 110V ±10%, 50/60Hz with grounding
- The manual includes flange, valve, hose, remote, standby battery and installation hardware guidance; confirm the destination angle-valve interface before installation.
- The parameter sheet and dimension image disagree on product height. Use the final approved drawing for packaging, bathroom clearance and order documents.
- The manual states that product specifications may change with printing time; confirm final configuration and market requirements before approval.
Engineering details
Features & engineering
Review the documented design, control and comfort details for this configuration.

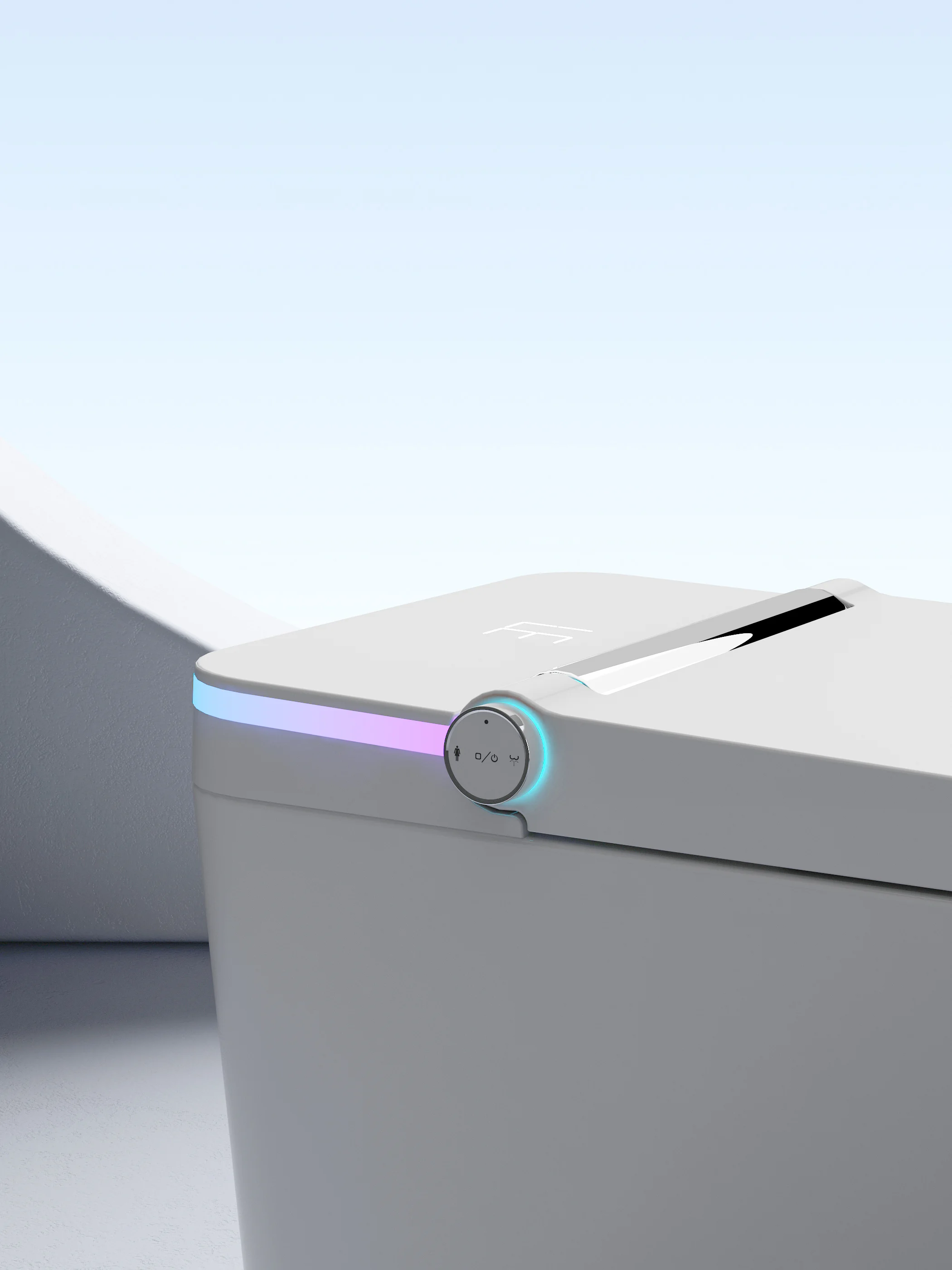

Remote and side-knob control
The manual shows a wireless remote for washing, drying, flushing, lid, light and temperature controls, with a side rotary knob for local operation.

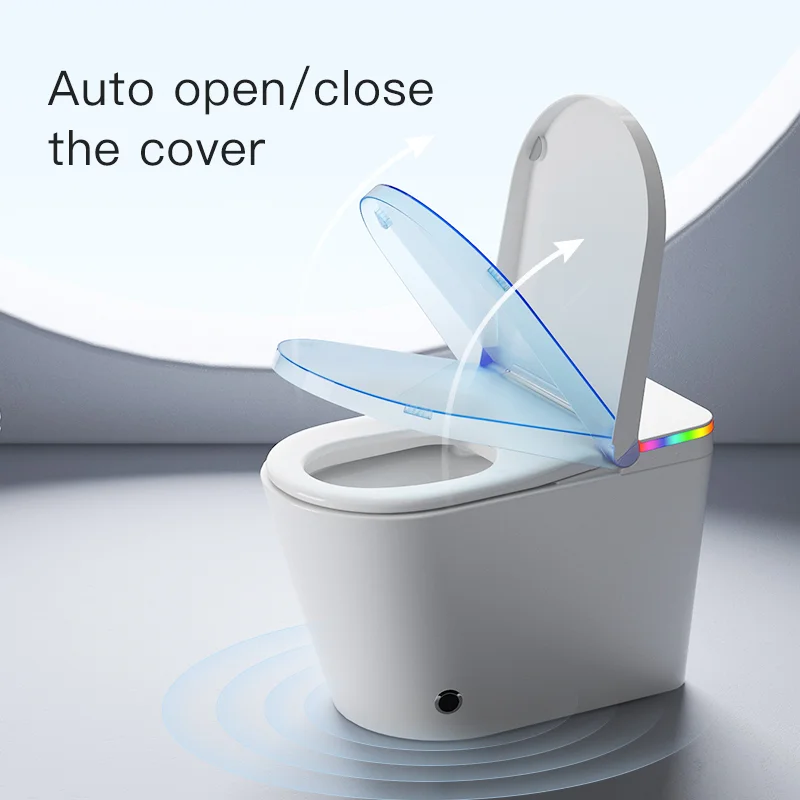

Automatic lid and foot-sensor operation
Automatic lid opening/closing, foot-sensor lid and seat operation, and foot-sensor flushing are documented in the manual and product visuals.

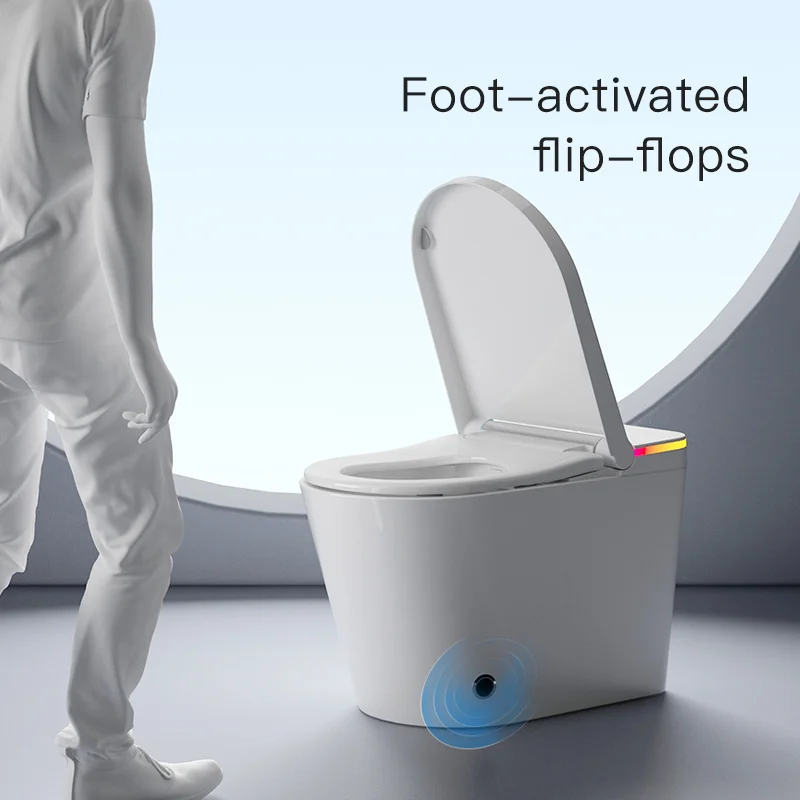

Foot-sensor interaction
A lower front sensor supports touch-free lid, seat and flushing actions when the related functions are enabled.
Adjustable washing and drying
Hip and female wash, moving wash, adjustable spray position and pressure, warm-air drying and self-cleaning nozzle functions are documented.
Four-level comfort settings
Water, seat and wind temperature each provide four settings from room temperature through approximately 99 °F.

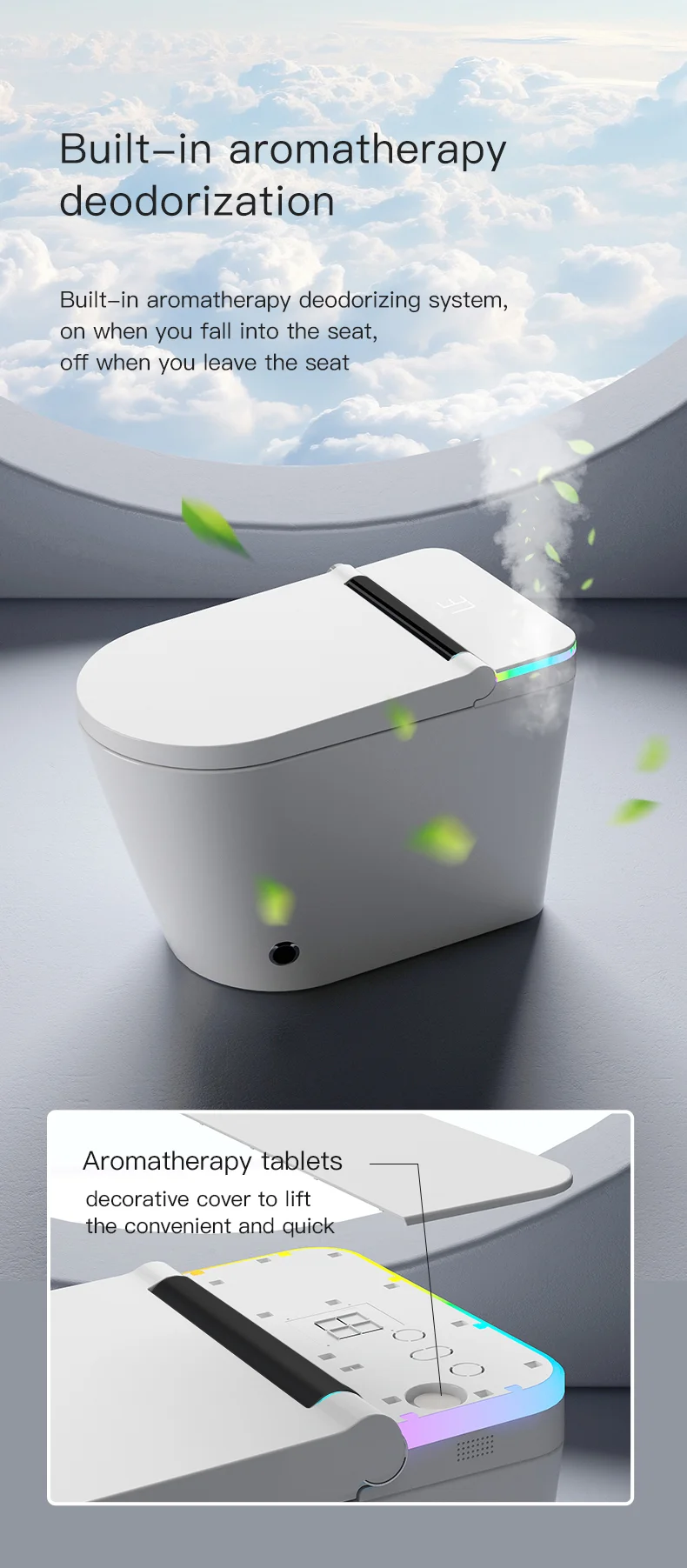

Instant heating and aromatherapy
The manual documents instant water heating; the product materials also list built-in aromatherapy deodorization activated with the seat sensor.
Power-failure flush and night light
The product materials list power-failure flushing, leakage protection, energy saving and a night-light function for everyday use.
Planning data
Technical specifications
Confirm destination-market requirements and the final approved configuration before ordering.
| Product type | Integrated smart toilet |
|---|---|
| Shape | U-shaped |
| Dimensions | 700 × 400 × 450 mm in parameter sheet; dimension image shows 465 mm height — confirm final drawing |
| Net weight | 40 kg |
| Power supply | 110V AC ±10%, 50/60Hz |
| Rated power | 1,260 W (manual) |
| Rough-in | 300 mm |
| Flush type | Siphon |
| Flush volume | 4.8 L |
| Control system | Wireless remote, side rotary knob, digital display and foot sensor |
| Water pressure (with tank) | 0.06–0.75 MPa static |
| Water pressure (without tank) | 0.15–0.75 MPa static |
| Water inlet / outlet temperature | Approx. 15 °C / 59 °F inlet; approx. 37 °C / 99 °F outlet |
| Water flow | Approx. 750 ml/min total; hip and female wash approx. 700 ml/min |
| Water / seat / wind temperature | Room temperature, approx. 93 °F, 96 °F or 99 °F · 4 levels |
| Seat-heater power | 40 W |
| Spray position | Adjustable forward and backward |
| Documented comfort functions | Hip wash, female wash, moving wash, warm-air drying, instant heating, nozzle self-cleaning, night light, automatic flush and foot-sensor operation |
| Additional product-sheet functions | Built-in aromatherapy deodorization, power-failure flush, leakage protection and energy-saving mode |
Function set
Comfort functions
Included functions are separated from configuration-dependent options.
Documented as included
- Auto lid
- Foot sensor
- Female washing
- Hip washing
- Moving wash
- Heated seat
- Warm-air drying
- Instant heating
- Night light
- Self-cleaning nozzle
- Seat sensor
- Temperature control
Technical library
Document centre
Download the available 6293 product files.
Evidence boundary
Documentation you can review before approval
Product details reflect the available model record. Confirm final configuration, certificates and market applicability with the supply team.
- Procurement checkFinal approval required before order
