Smart Toilet / Model S21G

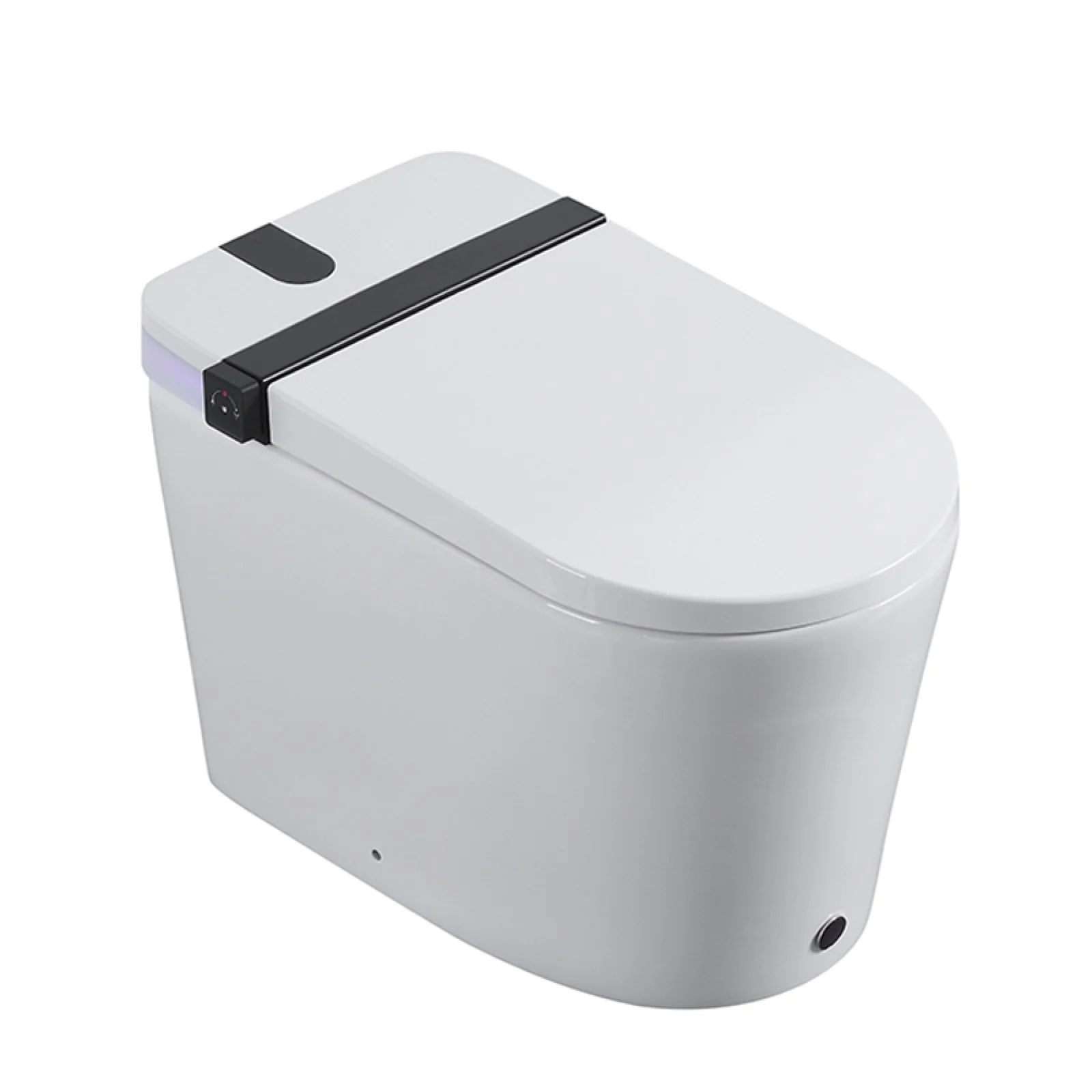

S21G Integrated Smart Toilet
Concealed-tank smart toilet with remote-led wash, drying and flush control, plus a high configuration with automatic lid functions.
- Voltage
- AC 110V / 60Hz
- Controls
- Remote control, Side knob
- Dimensions
- 690 × 410 × 329 mm
- AC 110V / 60Hz configuration
- 0.15–0.75 MPa water-pressure range
- CSA B45.16:21 and CSA B45.1-18 stated standards
Product overview
Built for informed sourcing
The S21G is a concealed-tank smart toilet controlled primarily by a wireless remote, with a side control knob as a secondary control path. The stated AC 110V / 60Hz configuration is designed for a 0.15 MPa dynamic to 0.75 MPa static water-pressure range and 4–35 °C inlet water.
Both medium and high configurations include assisted relief, rear and feminine washing, oscillating wash, four-level water-temperature, heated-seat and warm-air settings, automatic flushing, foot flush, remote flush, side-knob flush, night light and nozzle cleaning. The high configuration additionally adds automatic lid operation and foot-sensor lid operation.
Engineering details
Features & engineering
Review the documented design, control and comfort details for this configuration.
Wash programmes with adjustable settings
Assisted relief, rear wash, oscillating rear wash, feminine wash and oscillating feminine wash. Wash intensity, nozzle position and water temperature each provide four adjustment levels.
Heated seat and warm-air drying
Seat heating, warm-air drying and water-temperature adjustment each provide four temperature levels. Seat sensing activates the corresponding functions after use begins.
Multiple flush control paths
Automatic flush after leaving the seat, foot flush, remote flush and side-knob flush are included. A 9V backup battery box supports flushing during a power outage.
Nozzle hygiene and night light
The nozzle self-cleans before and after use. A dedicated manual nozzle-cleaning mode and night light are also included.
High configuration: automatic lid operation
The high configuration adds automatic lid operation and foot-sensor opening or closing of the lid and seat. These two functions are not included in the medium configuration.

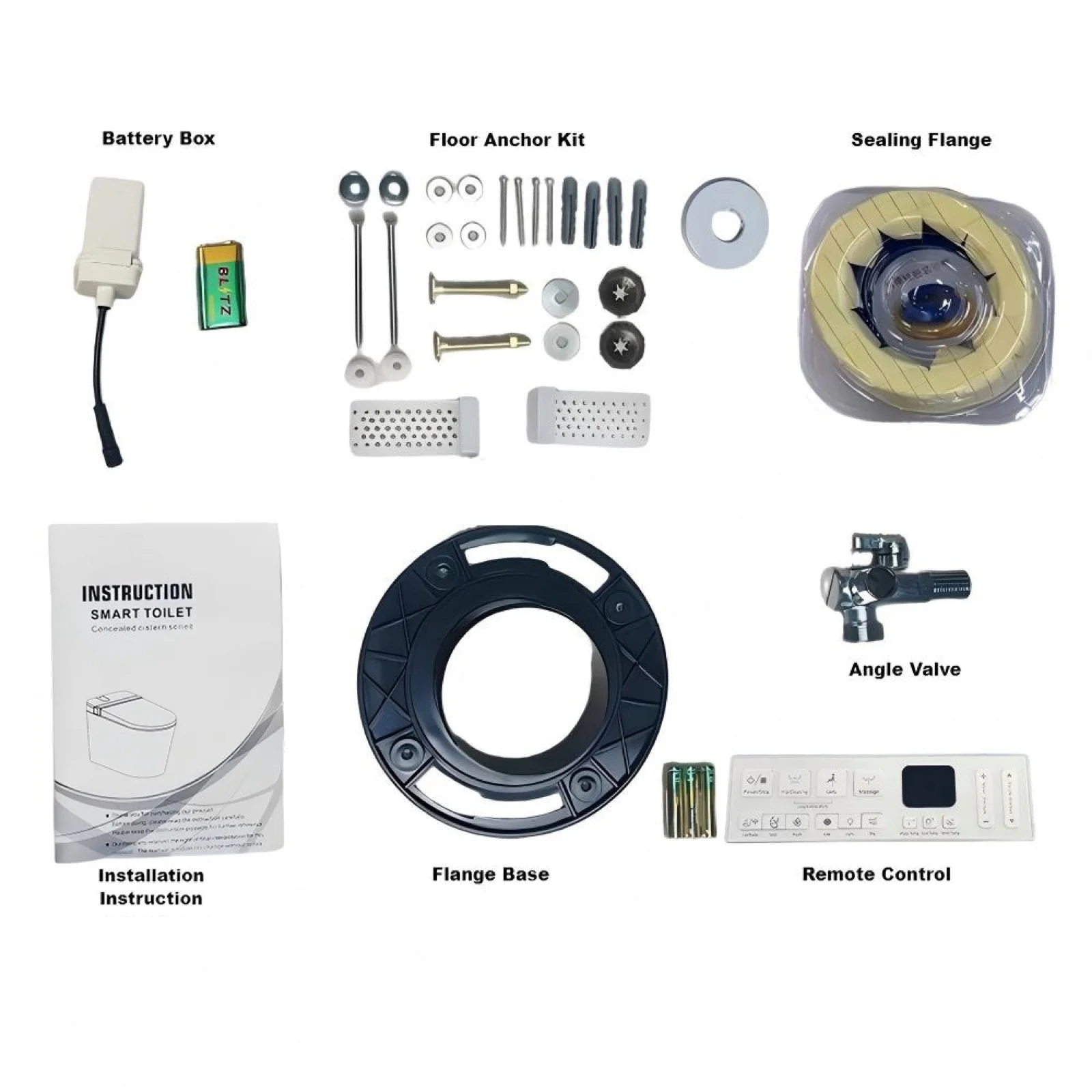

Supplied installation set
Supplied items include the toilet, wireless remote and bracket, flange, wax seal, installation hardware, backup battery box, flush hose, pre-installed wash hose and valve.
Planning data
Technical specifications
Confirm destination-market requirements and the final approved configuration before ordering.
| Product type | Concealed-tank smart toilet |
|---|---|
| Dimensions (L × W × H) | 690 × 410 × 329 mm (27.17 × 16.14 × 12.95 in) |
| Net weight | 39.3 kg / 86.64 lb |
| Power supply | AC 110V / 60Hz |
| Water pressure | 0.15 MPa dynamic – 0.75 MPa static |
| Inlet water temperature | 4–35 °C / 39.2–95 °F |
| Waterproof rating | IPX4 |
| Power-cord length | Approx. 1 m / 39.37 in |
| Control system | Wireless remote control with side control knob |
| Stated standards | CSA B45.16:21 and CSA B45.1-18 |
| Medium configuration | Full wash, comfort, flush, night-light and nozzle-cleaning function set |
| High configuration addition | Automatic lid operation and foot-sensor lid operation |
Function set
Comfort functions
Included functions are separated from configuration-dependent options.
Documented as included
- Foot sensor
- Heated seat
- Warm-air drying
- Night light
Conditional features — confirm availability
- Auto lidHigh configuration only
Technical library
Document centre
Request a reviewed, model-specific information pack for your destination market.
No public model file is currently attached to this catalogue record.
Request product documentsEvidence boundary
Documentation you can review before approval
Product details reflect the available model record. Confirm final configuration, certificates and market applicability with the supply team.
