Smart Toilet / Model W1
W1 Integrated Smart Toilet
A compact 110V integrated model with direct side control, temperature feedback and a documented comfort function set.
- Voltage
- 110V AC ±10% · 50/60Hz
- Controls
- Remote control, Side knob
- Rough-in / fit
- 300 / 400 mm options
- Dimensions
- 680 × 400 × 470 mm
- Jet siphon flush
- 39 kg net weight
- 1.5 m power cable
Product overview
Built for informed sourcing
The W1 is a 110V integrated smart toilet with automatic induction, foot-sensing flush, an LED display and a side knob for direct operation. Its documented functions include hip washing, female washing, moving wash, self-cleaning nozzle, instant water heating, heated seat, warm-air drying and a soft night light.
The supplied product parameters show a 680 × 400 × 470 mm body, 39 kg net weight, 300 / 400 mm rough-in options, jet siphon flushing and a 1.5 m power cable. The user manual specifies a grounded AC 110V installation and says not to use extension cords or any other power source.
The source pack contains two rated-power values: 1,260 W in the user manual and 1,360 W in the product-parameters graphic. Treat the final electrical rating, water pressure and market configuration as quote-stage confirmation items before approval.
Engineering details
Features & engineering
Review the documented design, control and comfort details for this configuration.

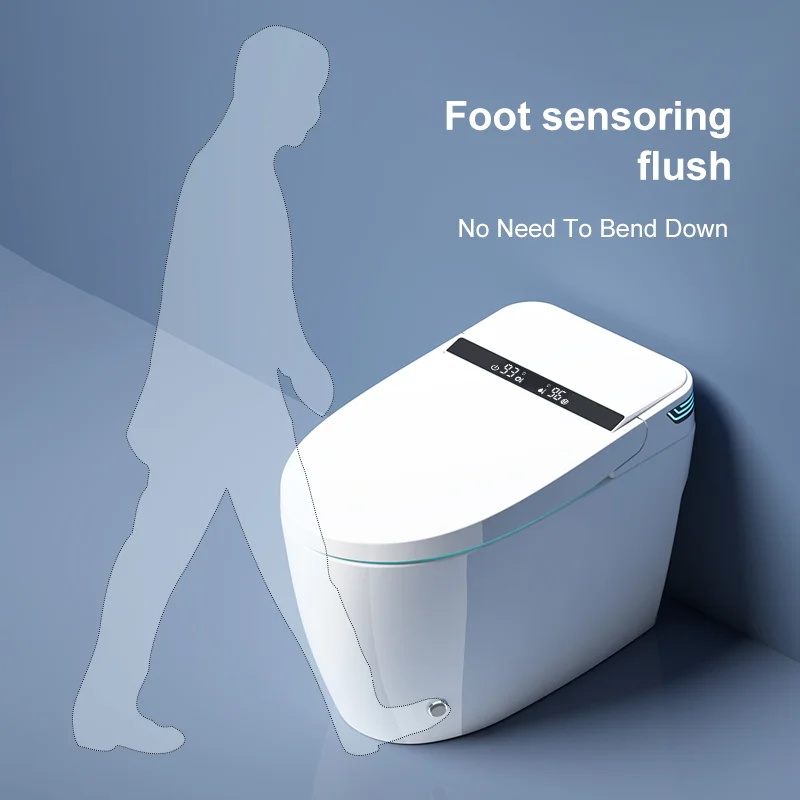

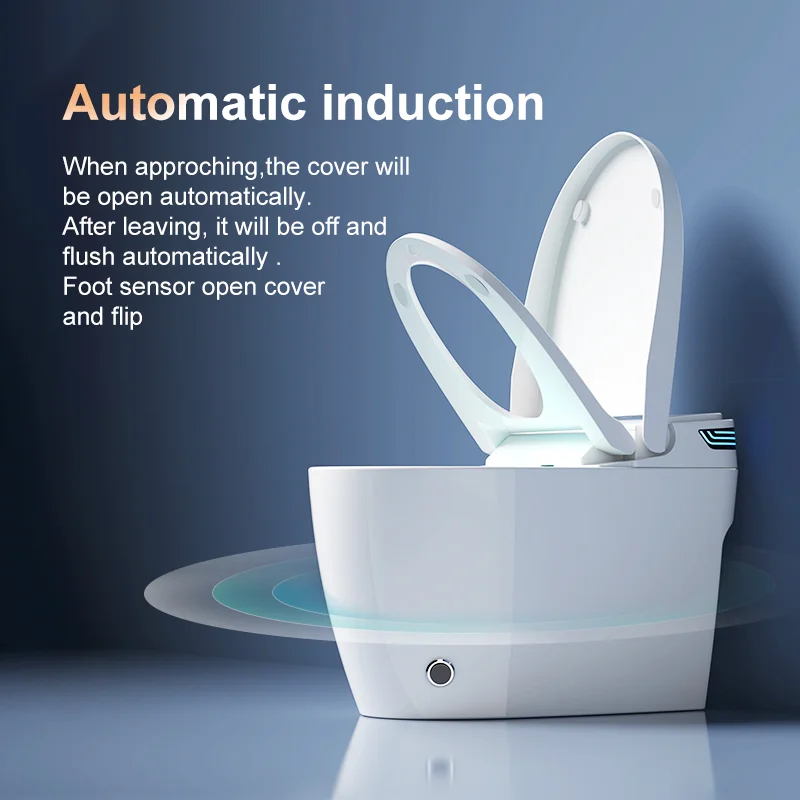

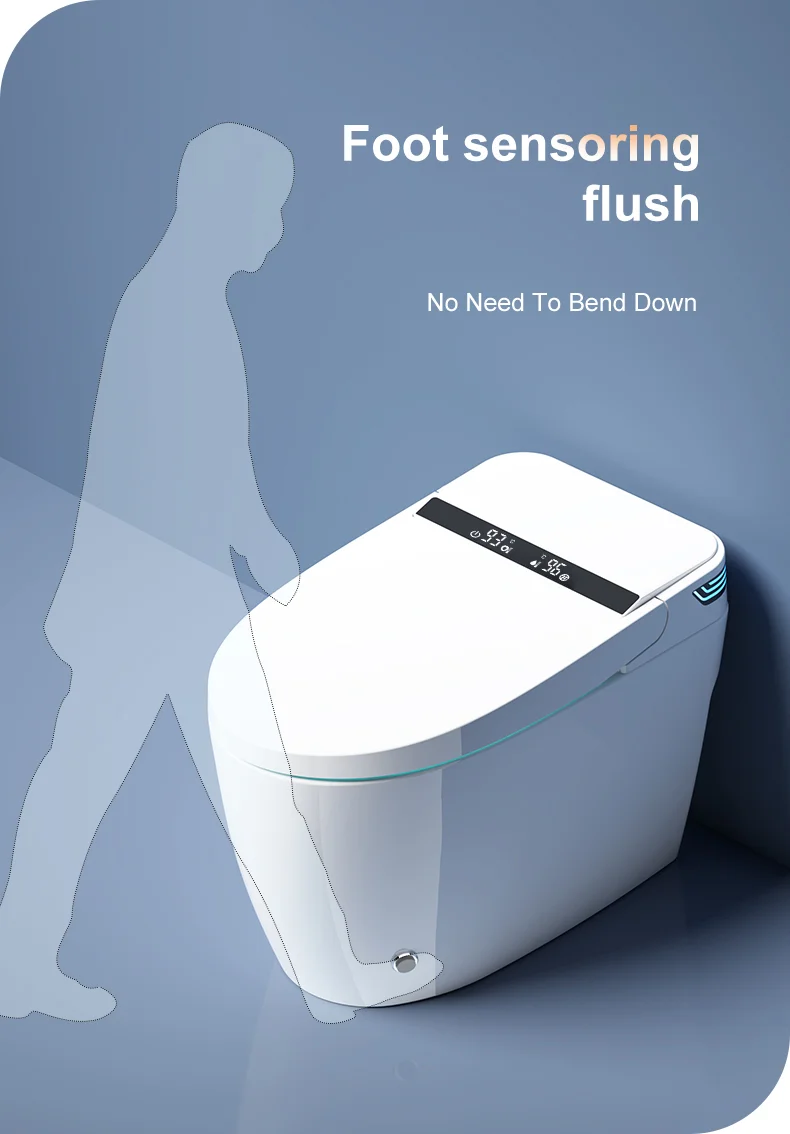

Automatic induction and foot sensing
The supplied product material shows automatic lid induction and foot-sensing flush for touch-free operation without bending down.

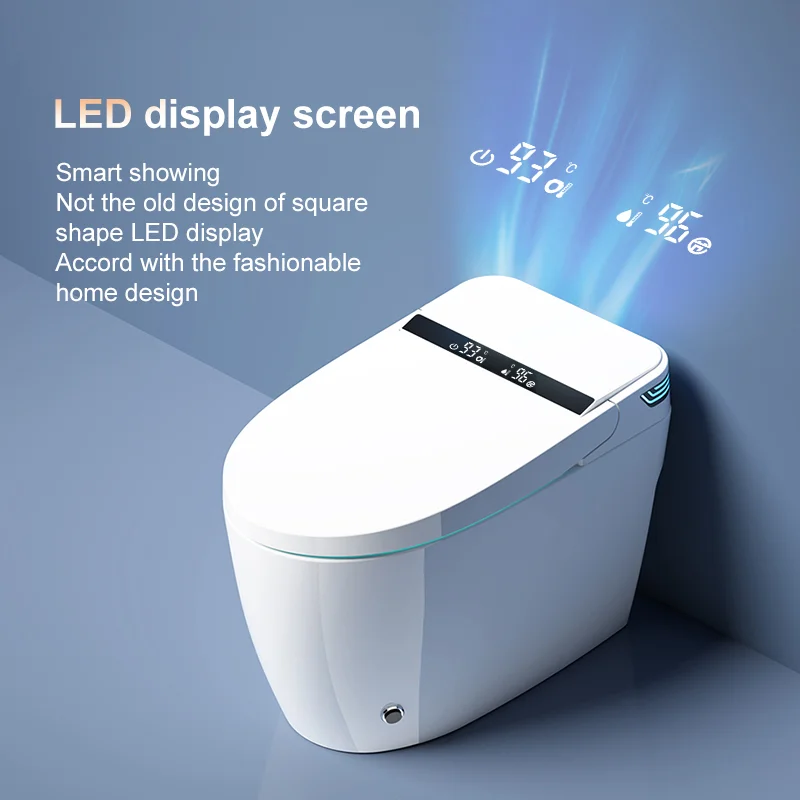

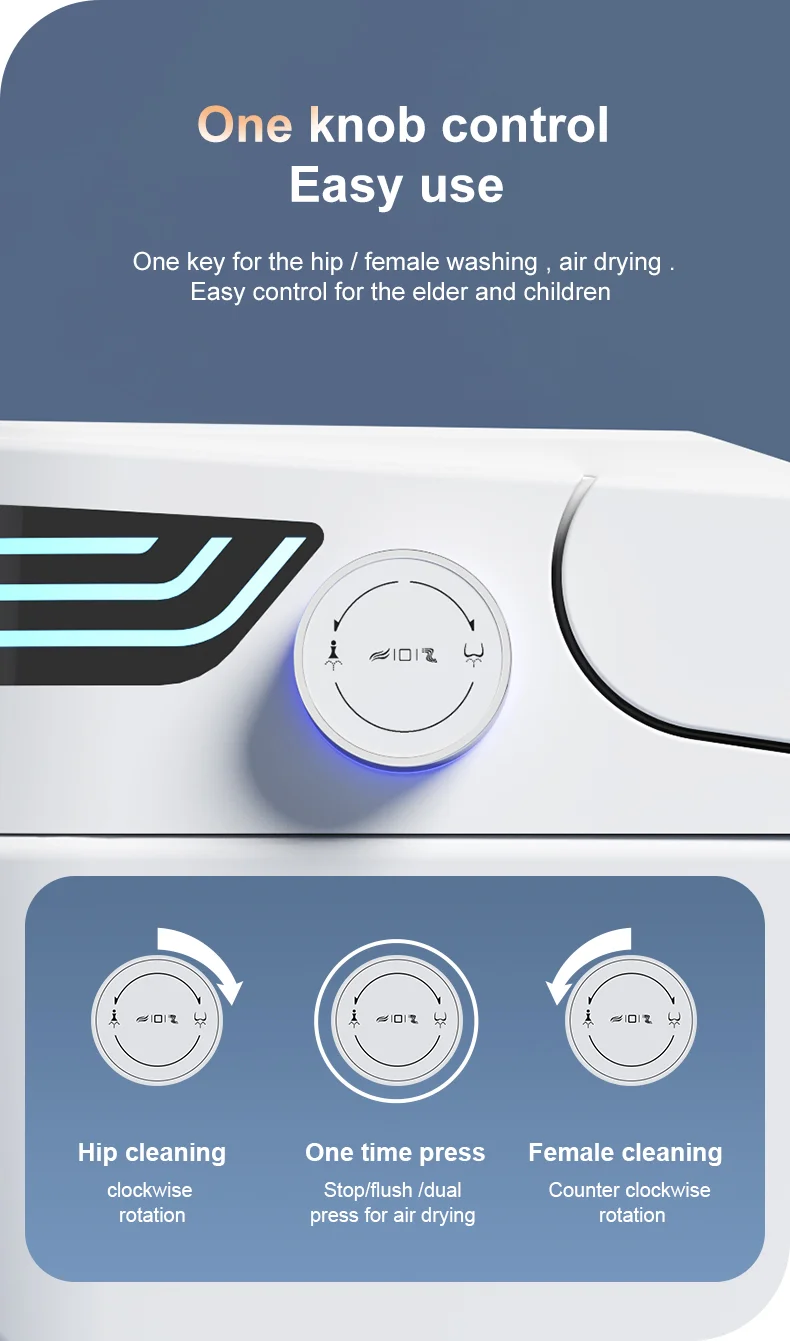

LED display and one-knob control
A top LED display provides temperature feedback, while the side knob starts hip or female washing, stops operation and supports flush or drying actions.

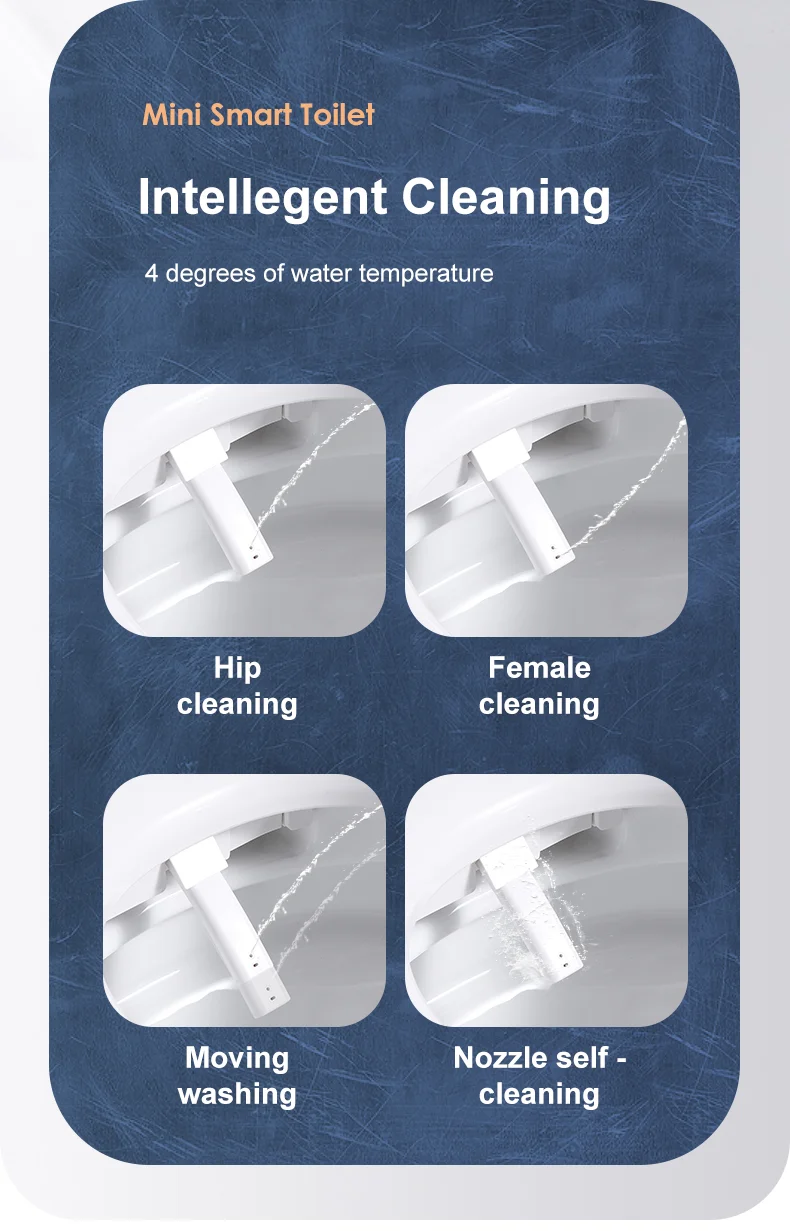

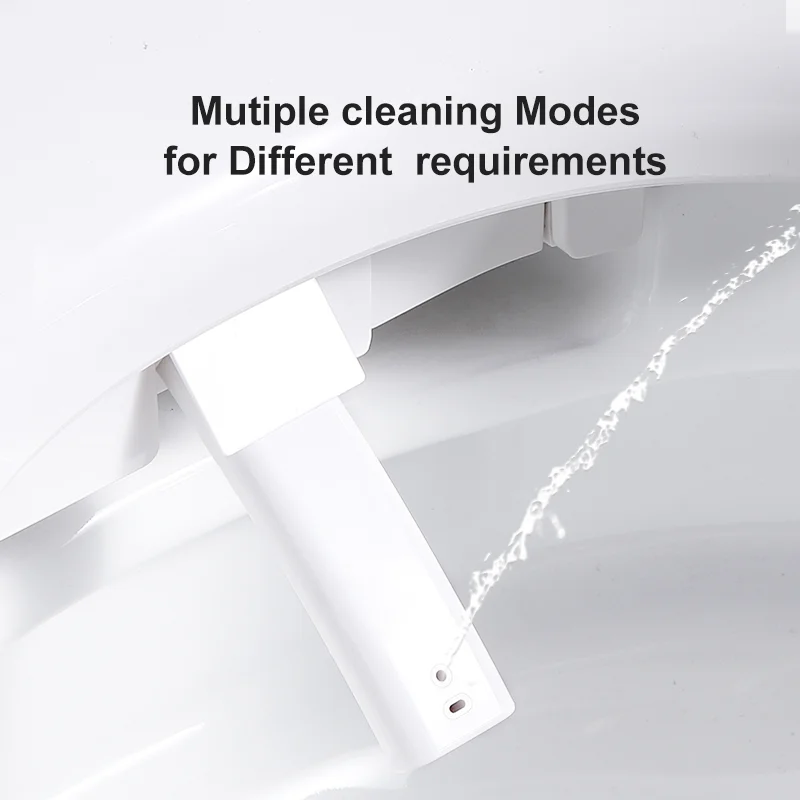

Hip, female and moving wash
The documented cleaning modes include hip washing, female washing, moving wash, adjustable spray position and self-cleaning nozzle operation.

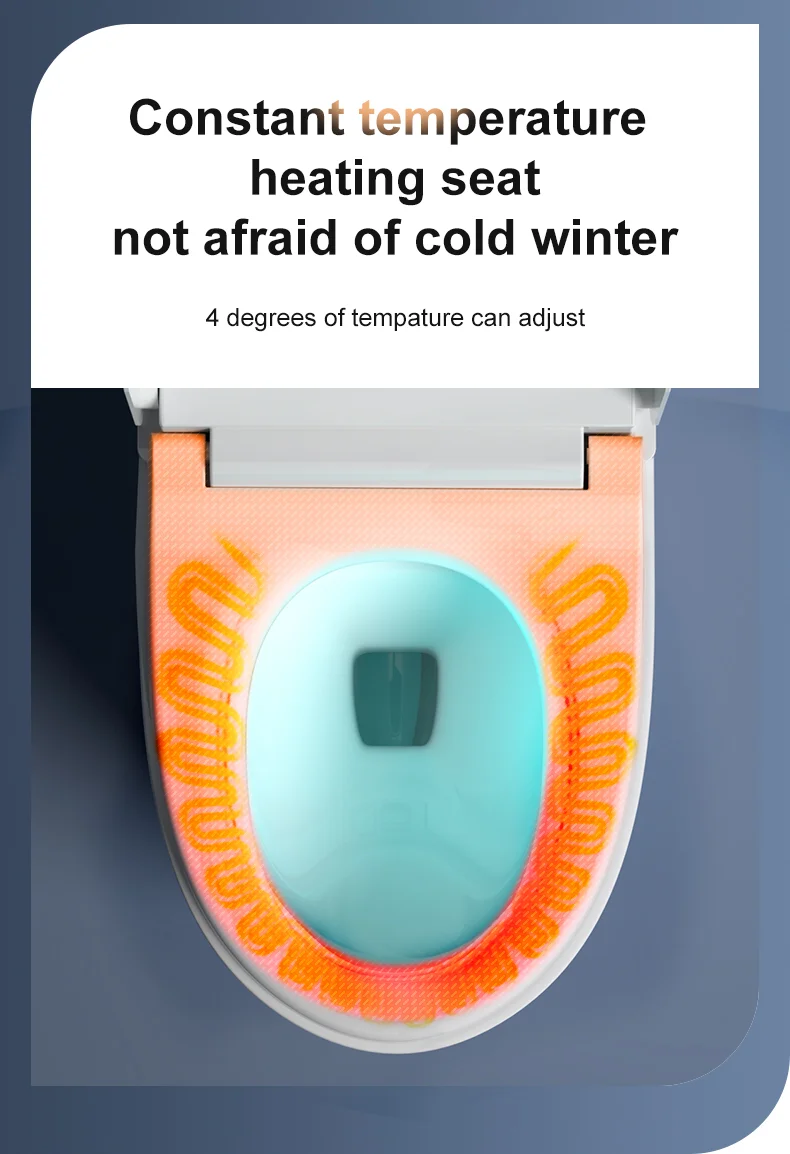

Four-level temperature comfort
Water, seat and warm-air temperatures each offer four settings from room temperature to approximately 99 °F.

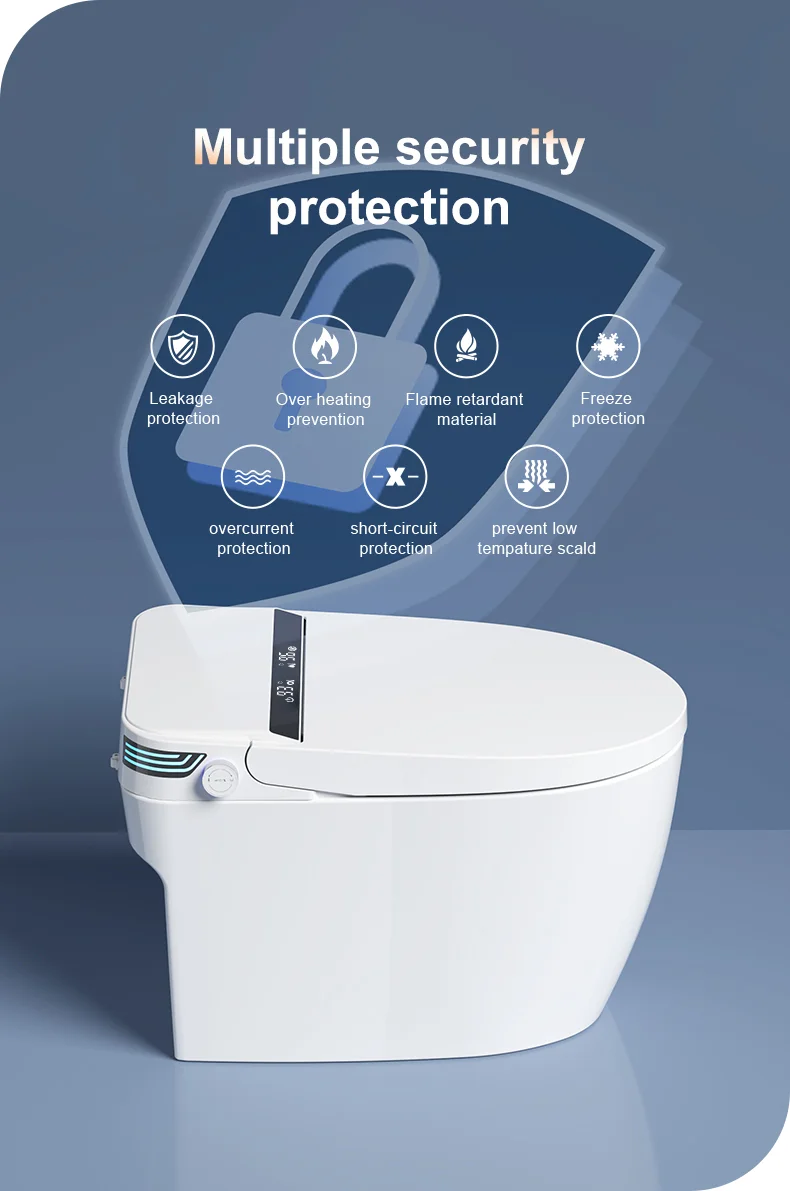

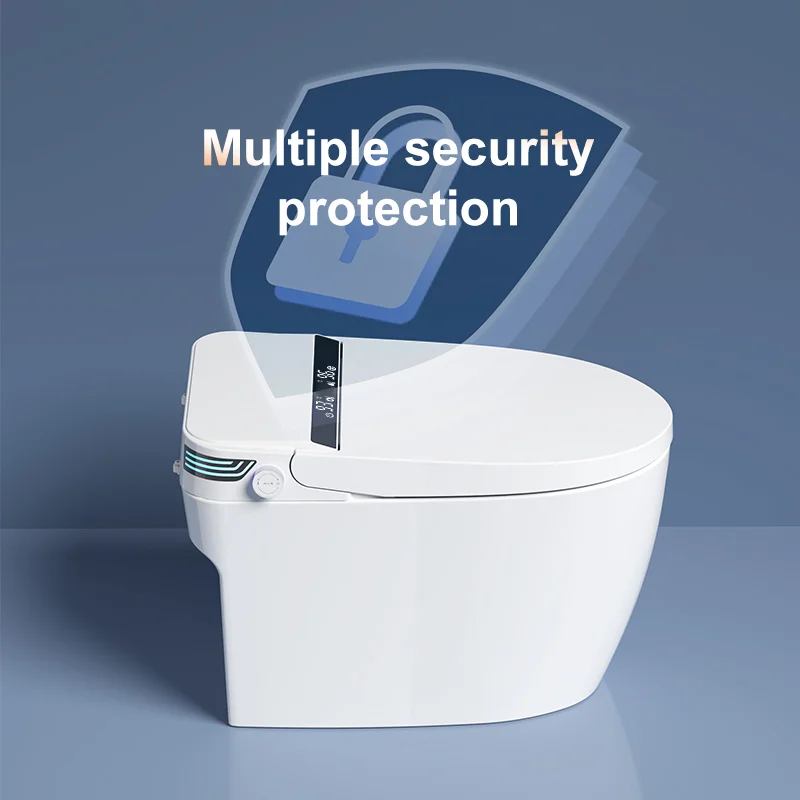

IPX4 and multiple safety measures
The product material documents IPX4 water protection; the manual also specifies grounded 110V installation, leakage protection and no extension cords.

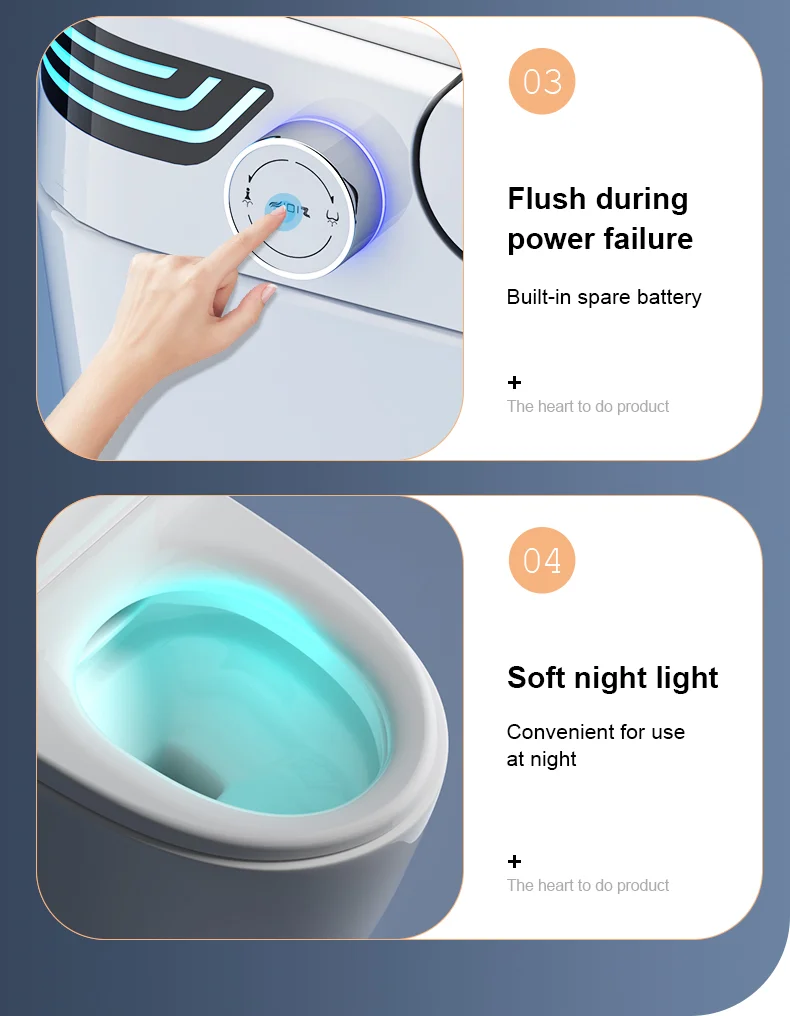

Soft close and night light
Soft-close lid and seat construction, a soft night light and a built-in backup battery flush are shown in the supplied product material.
Planning data
Technical specifications
Confirm destination-market requirements and the final approved configuration before ordering.
| Product type | Integrated smart toilet |
|---|---|
| Dimensions | 680 × 400 × 470 mm |
| Rated voltage | 110V ±10%, AC, 50/60Hz |
| Power cable | 1.5 m |
| Rated power | 1,260 W in user manual; product graphic states 1,360 W — confirm final configuration |
| Rough-in | 300 mm / 400 mm options |
| Control system | Remote control & side knob |
| Flush type | Jet siphon flush |
| Flush performance | Product graphic states 5 L discharged in 15 seconds |
| Net weight | 39 kg |
| Water supply | Direct connection to the water pipe |
| Water pressure | 0.06–0.75 MPa with water tank; 0.15–0.75 MPa static without tank |
| Water temperature | Room temperature, 93 °F, 96 °F or 99 °F · 4 levels |
| Seat temperature | Room temperature, 93 °F, 96 °F or 99 °F · 4 levels |
| Warm-air temperature | Room temperature, 93 °F, 96 °F or 99 °F · 4 levels |
| Wash flow | Approx. 700 ml/min for hip and female washing |
| Spray position | Adjustable forward and backward |
| Seat heater power | 40 W |
| Ambient environment | 0–50 °C shown in product parameter graphic |
| Water protection | IPX4 shown in product feature material |
| Safety installation | Grounded 110V socket with leakage protection; do not use extension cords |
Function set
Comfort functions
Included functions are separated from configuration-dependent options.
Documented as included
- Auto lid
- Foot sensor
- Female washing
- Hip washing
- Moving wash
- Heated seat
- Warm-air drying
- Instant heating
- Night light
- Self-cleaning nozzle
- Seat sensor
- Temperature control
Technical library
Document centre
Download the available W1 product files.
Evidence boundary
Documentation you can review before approval
Product details reflect the available model record. Confirm final configuration, certificates and market applicability with the supply team.
- Procurement checkFinal approval required before order
