Smart Toilet / Model K1
K1 Integrated Smart Toilet
110V integrated smart toilet with remote and side-knob control, automatic lid and flush functions, and a documented four-level comfort system.
- Voltage
- 110V ±10% · 50/60Hz
- Controls
- Remote control, Side knob
- Rough-in / fit
- 300 / 400 mm options
- Dimensions
- 700 × 400 × 465 mm
- 700 × 400 × 465 mm · 40 kg net
- IPX4 · jet siphon flush
- 300 / 400 mm rough-in options
Product overview
Built for informed sourcing
The K1 manual documents an integrated smart toilet with wireless remote control, a side rotary knob, radar-assisted automatic lid operation, foot-sensor flushing, hip and female washing, baby wash, moving wash, warm-air drying, nozzle self-cleaning and a night light. Water, seat and wind temperature each provide four levels.

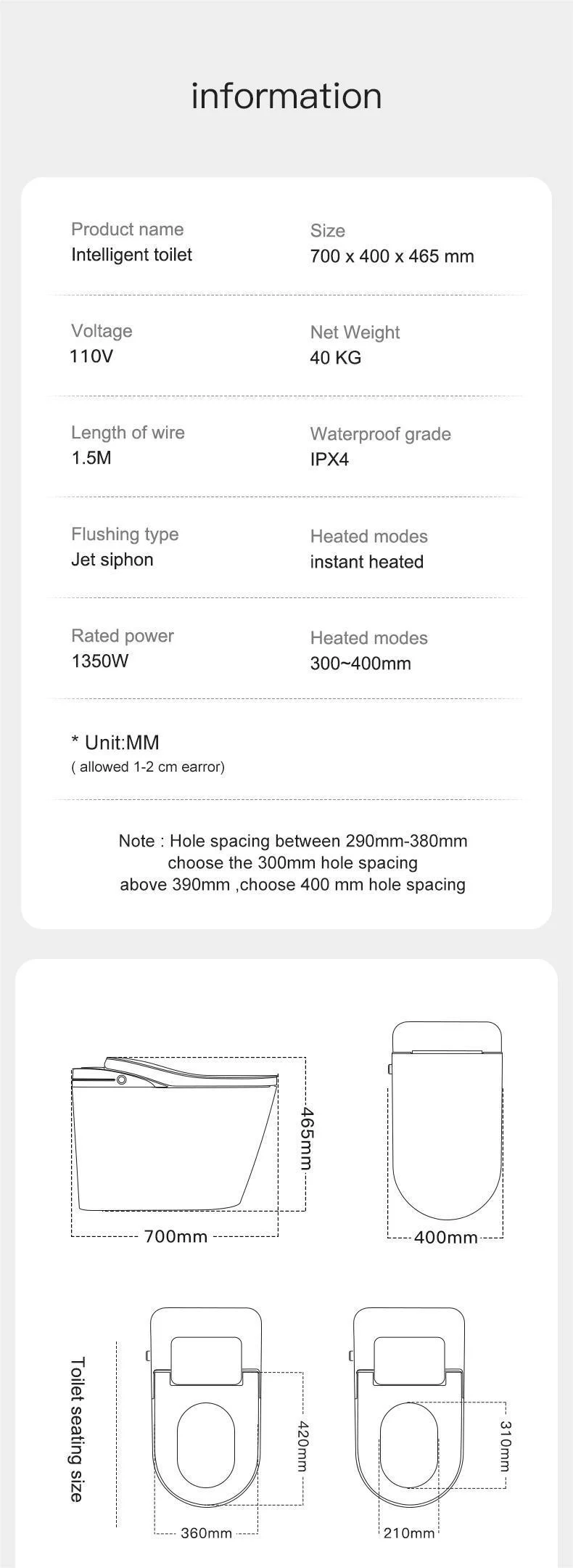

The product information image lists 700 × 400 × 465 mm, 40 kg net weight, 1.5 m power cord, IPX4 protection, jet siphon flushing and 300 / 400 mm rough-in options. The manual lists 1,260 W rated power, while the product information image lists 1,350 W; the final configuration should be confirmed before approval.
The manual also shows a flange ring, remote control, water valve, standby battery, transfer valve, flange, screws and a screwdriver in the supplied installation set. Match the connector, water pressure and rough-in to the destination bathroom before sampling or ordering.
Installation review
Confirm rough-in, pressure and connector before approval
K1 supports two rough-in directions shown in the product information sheet. Match the bathroom opening, mounting-hole spacing, water pressure and valve connector before sampling or ordering.
- Product size
- 700 × 400 × 465 mm
- Rough-in
- 300 mm or 400 mm
- Mounting-hole guidance
- 290–380 mm: 300 mm option; above 390 mm: 400 mm option
- Water pressure
- 0.06–0.75 MPa with tank; 0.15–0.75 MPa without tank
- Power
- AC 110V ±10%, 50/60Hz
- The manual includes flange, valve, transfer-valve, hose, screws and connector guidance; confirm the actual angle-valve interface before installation.
- The final rated-power value requires confirmation because the manual and product information image show 1,260 W and 1,350 W respectively.
- Use the destination-market installation and electrical requirements for final approval.
Engineering details
Features & engineering
Review the documented design, control and comfort details for this configuration.

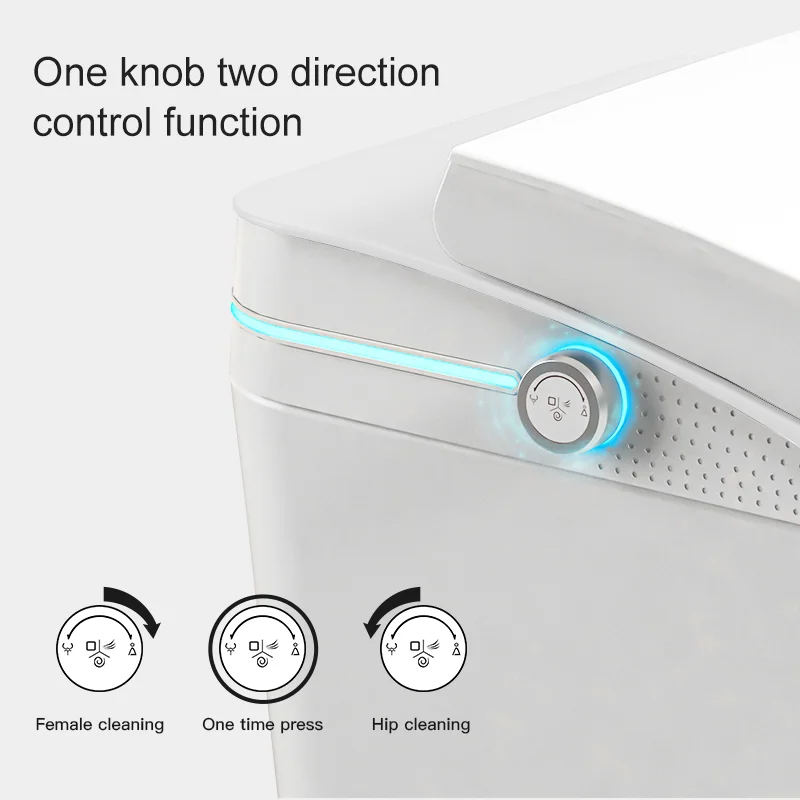

Dual local and wireless control
The side rotary knob selects hip or female washing, while the wireless remote controls washing, drying, lid, flushing and temperature settings.

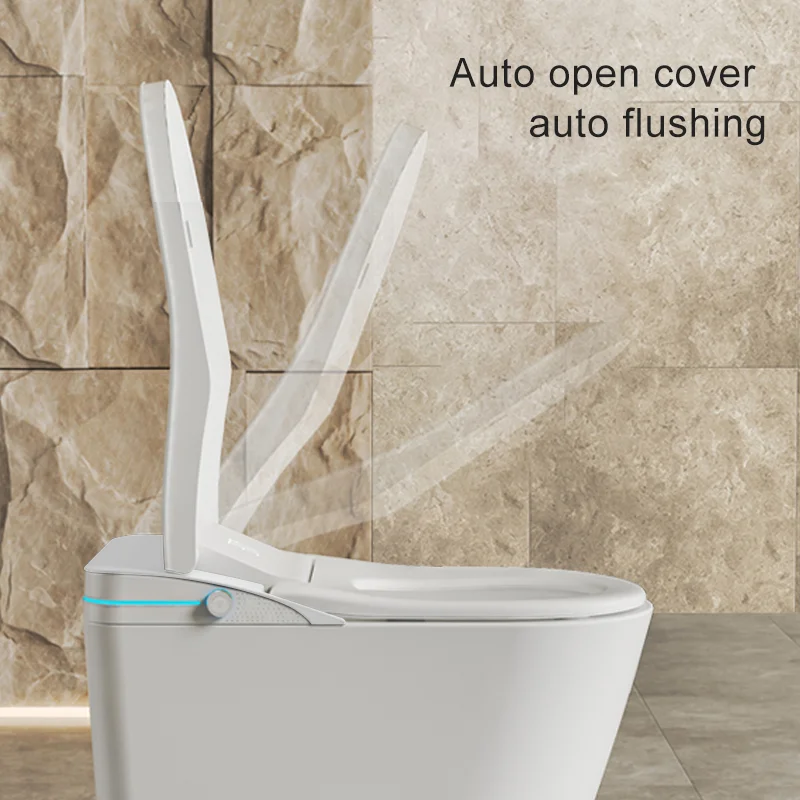

Radar lid and automatic flushing
The manual describes radar-assisted automatic lid opening and closing, automatic flushing after leaving, and foot-sensor flushing and lid operation.

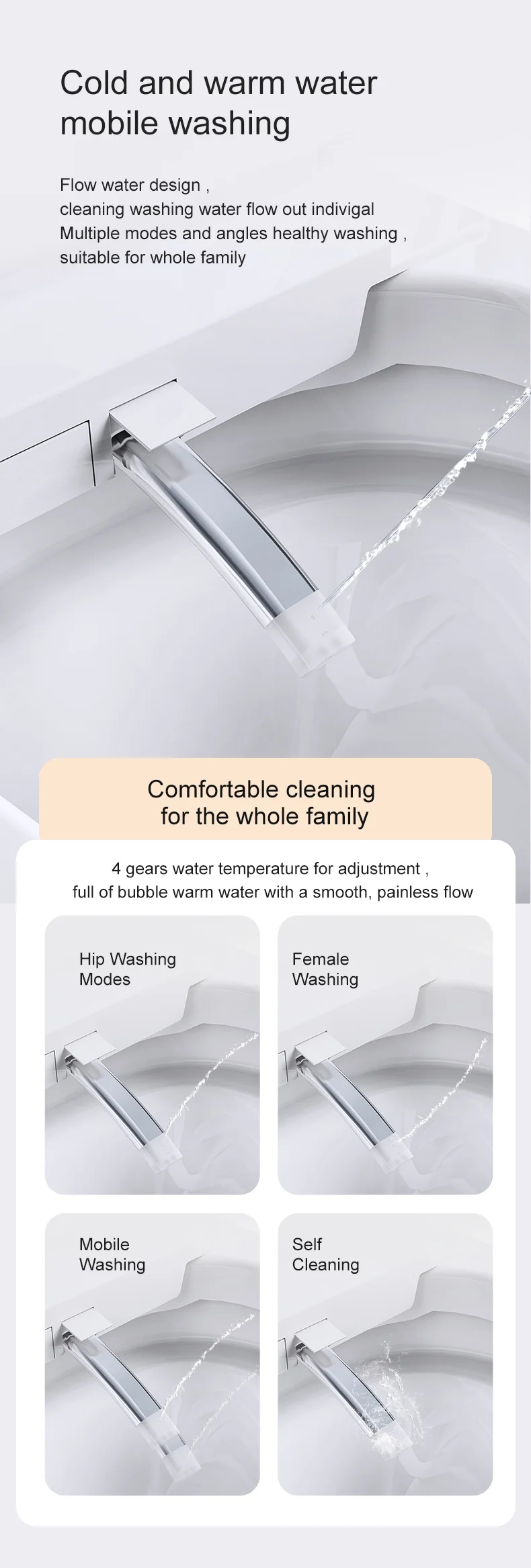

Hip, female, baby and moving wash
The documented wash set includes hip, female and baby wash, moving wash, adjustable cleaning height and self-cleaning of the spray head.

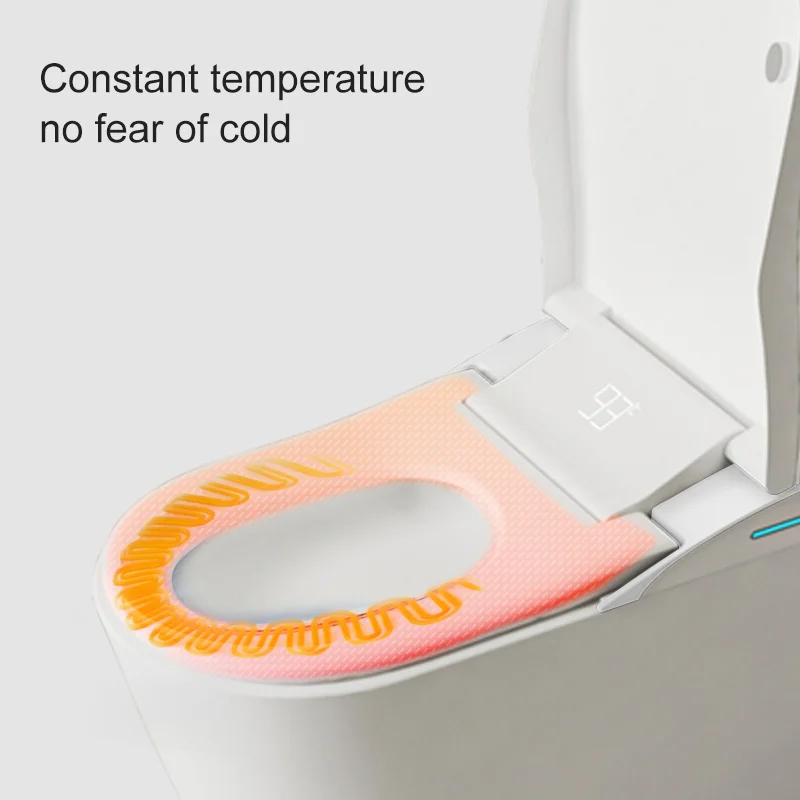

Four-level comfort settings
Water, seat and warm-air temperature each provide four settings from room temperature through approximately 99 °F.

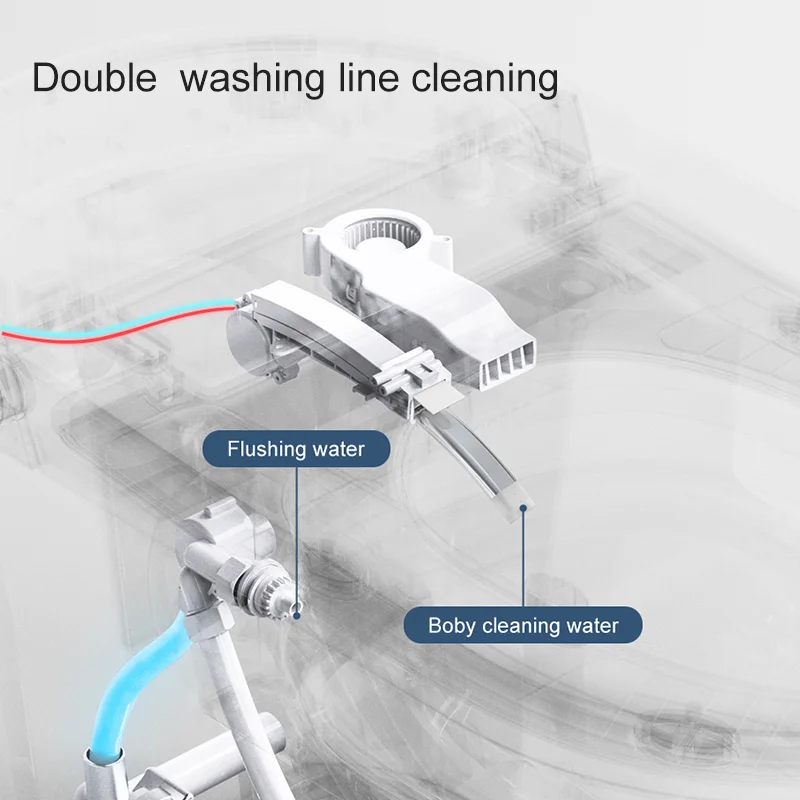

Separated water lines
The product visual presents separated flushing and body-washing water lines with independent filtration at the cleaning source.
IPX4 and safety protection
The product information visual identifies IPX4 waterproofing, leakage protection, temperature sensing and high-temperature protection.

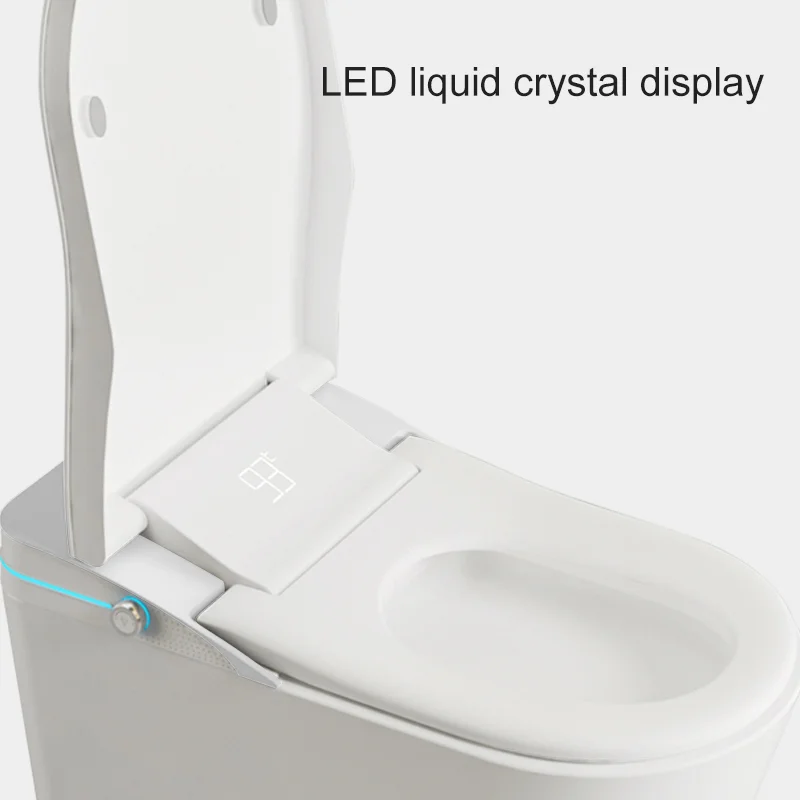

LED display and night light
An LED display provides temperature/status feedback, and the manual documents a night-light function.
300 / 400 mm installation options
The dimension sheet shows 300 mm and 400 mm rough-in choices, with mounting-hole guidance for the two installation ranges.
Planning data
Technical specifications
Confirm destination-market requirements and the final approved configuration before ordering.
| Product type | Integrated smart toilet |
|---|---|
| Dimensions (W × D × H) | 700 × 400 × 465 mm |
| Net weight | 40 kg |
| Power supply | 110V AC ±10%, 50/60Hz |
| Rated power | 1,260 W in manual; 1,350 W in product information image — confirm final configuration |
| Power-cord length | 1.5 m (product information image) |
| Flush type | Jet siphon |
| Rough-in options | 300 mm / 400 mm |
| Mounting-hole guidance | 290–380 mm: choose 300 mm; above 390 mm: choose 400 mm |
| Control system | Wireless remote, side rotary knob, radar and foot sensor |
| Water pressure (with tank) | 0.06–0.75 MPa static |
| Water pressure (without tank) | 0.15–0.75 MPa static |
| Water inlet temperature | Approx. 15 °C / 59 °F |
| Outlet water temperature | Approx. 37 °C / 99 °F |
| Water flow | Approx. 750 ml/min total; hip and female wash approx. 700 ml/min |
| Water / seat / wind temperature | Room temperature, approx. 93 °F, 96 °F or 99 °F · 4 levels |
| Seat-heater power | 40 W |
| Spray position | Adjustable forward and backward |
| Waterproof rating | IPX4 |
| Documented functions | Hip wash, female wash, baby wash, moving wash, warm-air drying, nozzle self-cleaning, night light, automatic flush and foot-sensor flush |
Function set
Comfort functions
Included functions are separated from configuration-dependent options.
Documented as included
- Auto lid
- Foot sensor
- Female washing
- Hip washing
- Moving wash
- Heated seat
- Warm-air drying
- Instant heating
- Night light
- Self-cleaning nozzle
- Seat sensor
- Temperature control
Technical library
Document centre
Download the available K1 product files.
Evidence boundary
Documentation you can review before approval
Product details reflect the available model record. Confirm final configuration, certificates and market applicability with the supply team.
- Procurement checkFinal approval required before order
