Smart Toilet / Model A17
A17 Integrated Smart Toilet
U-shaped integrated smart toilet with siphon jet flushing, foot-sensor operation and a full comfort function set — CUPC, UL and FCC certified for the North American market.
- Voltage
- 110–130V
- Controls
- Remote control, Side knob
- Rough-in / fit
- 305 mm
- Dimensions
- 680 × 390 × 460 mm
- 4.8 L maximum flush
- 39.5 kg net weight
- CUPC + UL + FCC certified
Product overview
Built for informed sourcing
The A17 is an integrated, floor-mounted smart toilet built around a U-shaped ceramic body with siphon jet flushing. It is engineered for hospitality guestrooms, premium residential bathrooms and multifamily developments that need a repeatable, serviceable fixture with documented North American compliance.
A 110–130V / 50–60Hz configuration, 305 mm (12 in) rough-in and 4.8 L (1.27 GPF) maximum flush make the A17 a direct-fit direction for buyers consolidating a North American product range around a single integrated model. The unit ships with a sealing ring, inlet valve and remote control with holder.
The A17 carries verified CUPC (2022), UL (E527307) and FCC ID compliance documentation — request the certificate pack for import and inspection approval.
Engineering details
Features & engineering
Review the documented design, control and comfort details for this configuration.
Siphon jet TPC flushing
Siphon jet flush with TPC pre-wetting — 4.8 L / 1.27 GPF max, configurable down to 4.0 L / 1.06 GPF. Automatic, remote and foot-sensor flush paths.

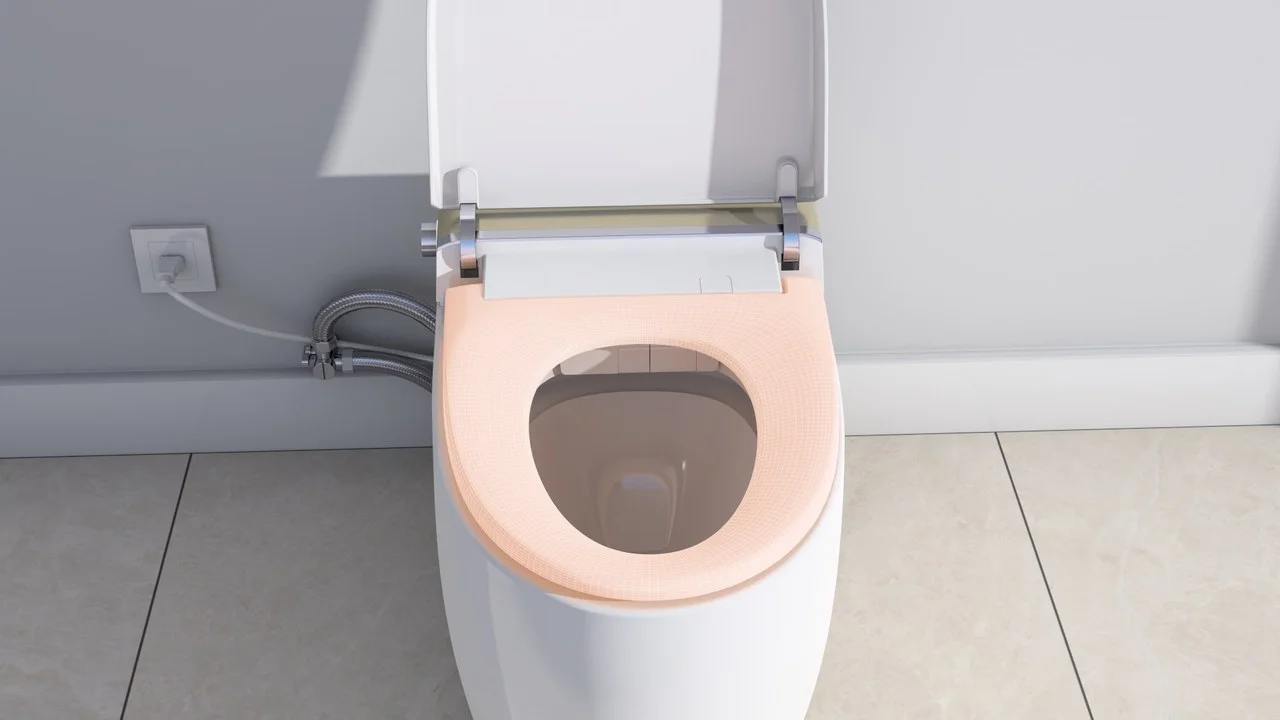

Heated seat with anti-scald
Seat heats and holds temperature, then automatically lowers after 15 minutes seated to prevent low-temperature scalding. 3-level adjustment.

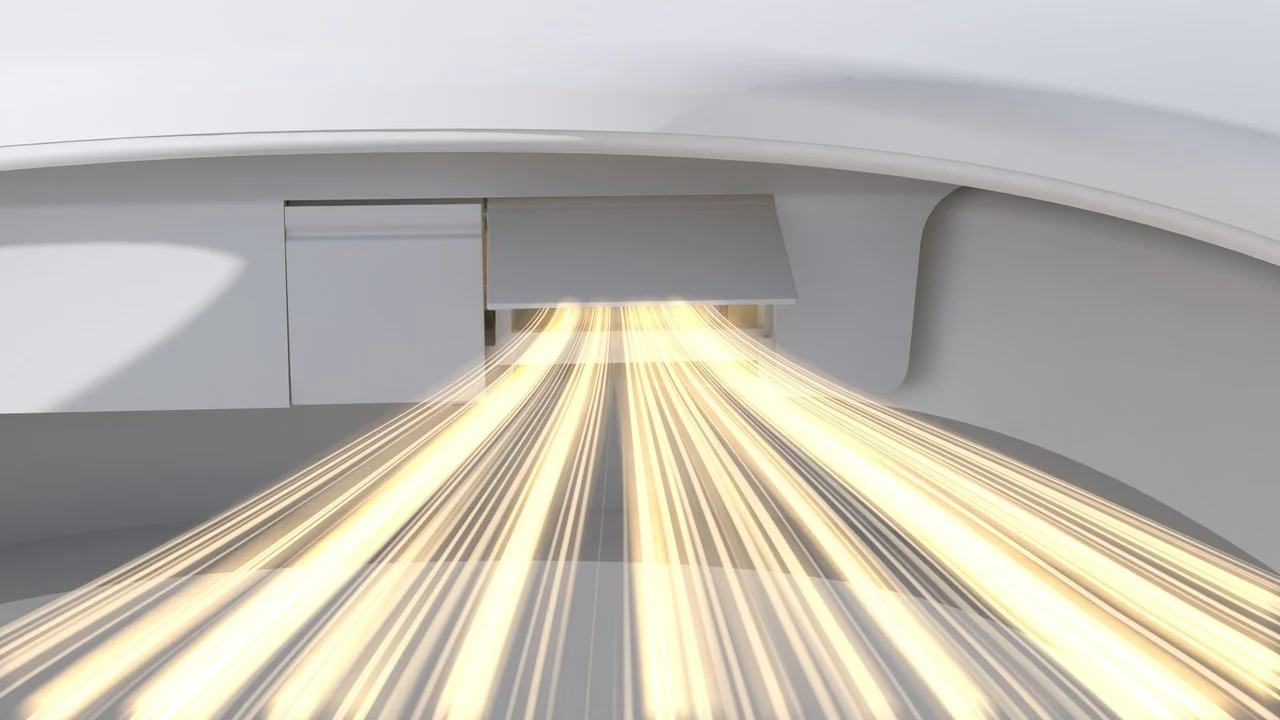

Warm-air drying
Adjustable warm-air drying with 4 temperature levels up to approx. 107 °F, paired with rear and bidet washing functions.

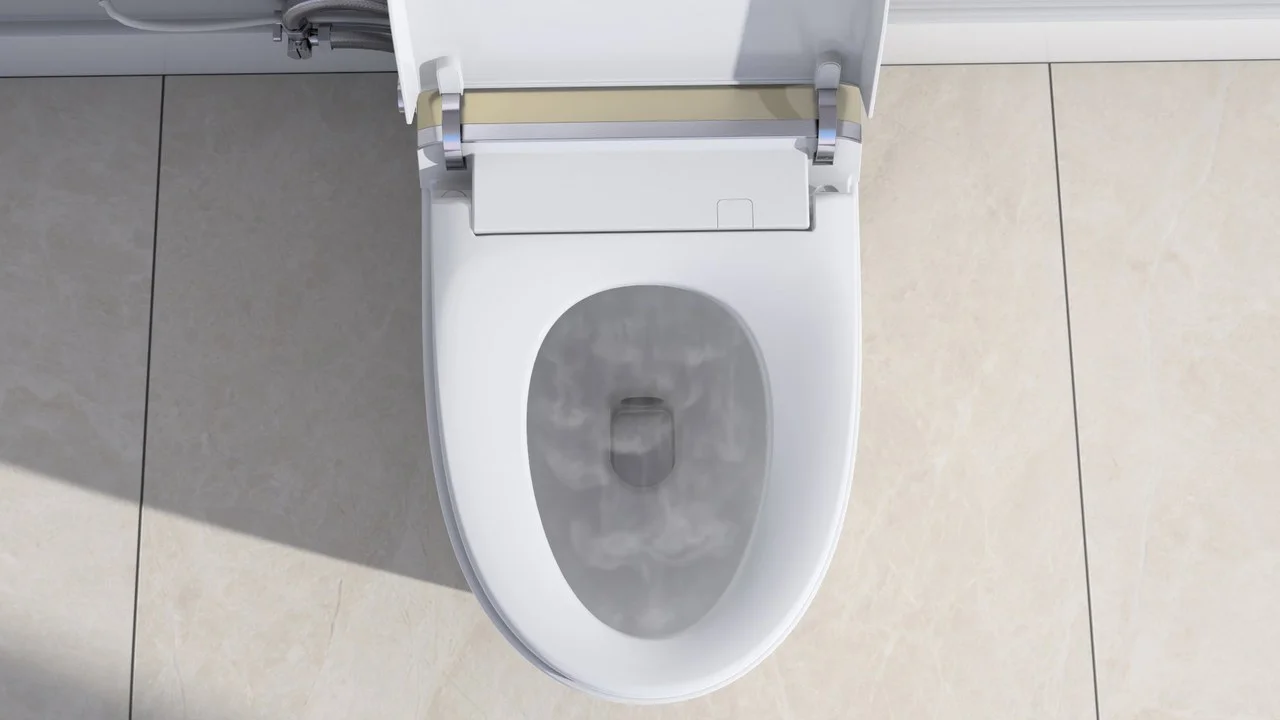

Activated-carbon deodorization
Auto-deodorize after seated, using an activated-carbon deodorant module for continuous guestroom and residential use.

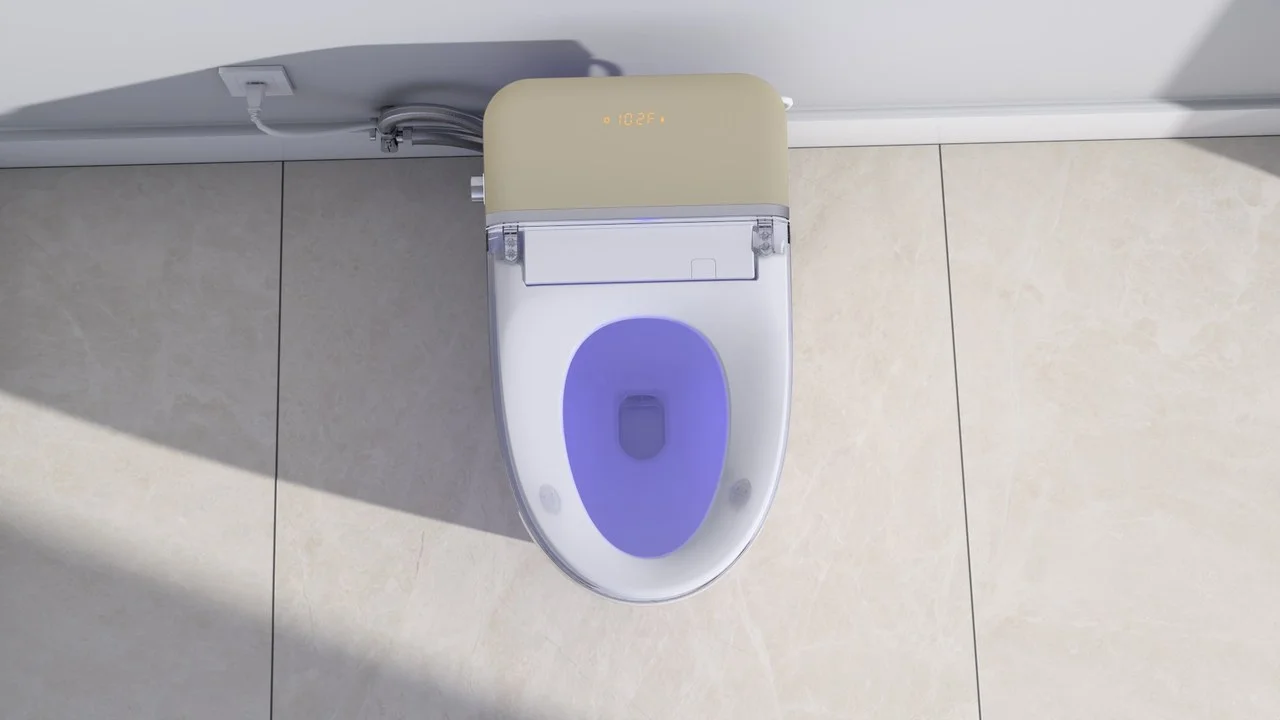

Ceramic UVC self-cleaning
Ceramic UVC treatment plus self-cleaning stainless steel nozzle — antibacterial materials on the lid, seat and nozzle touch surfaces.

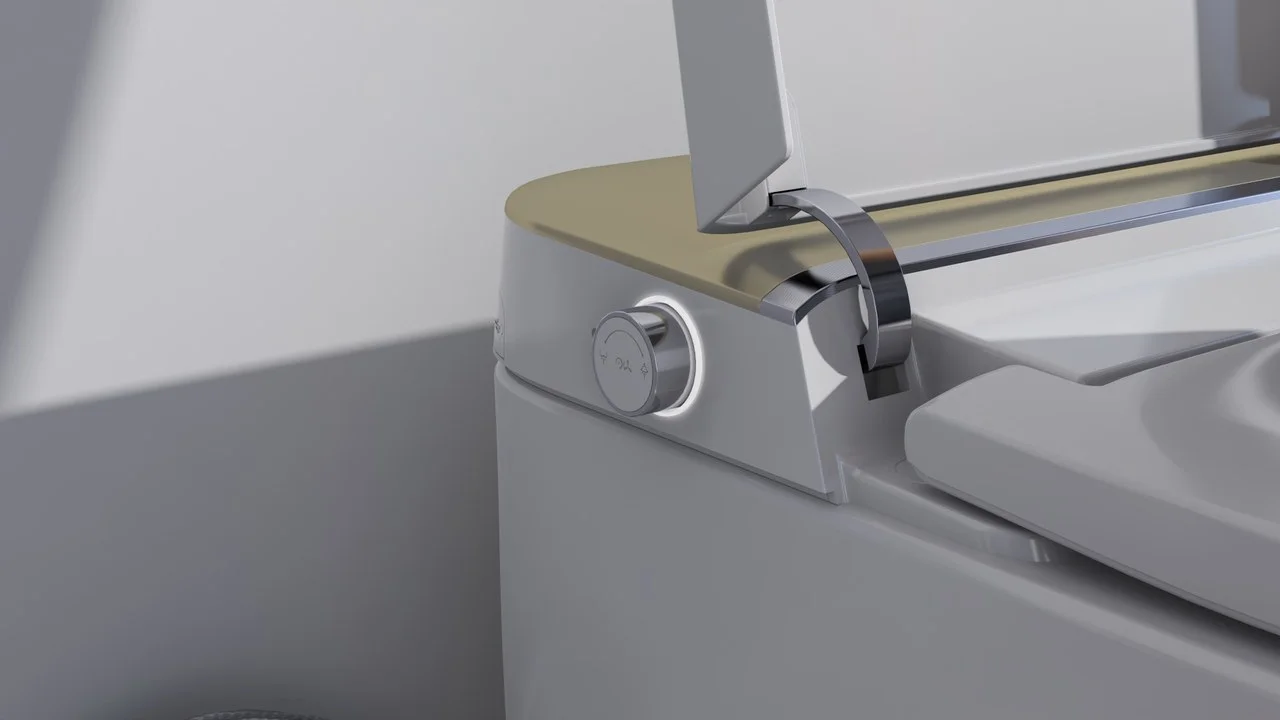

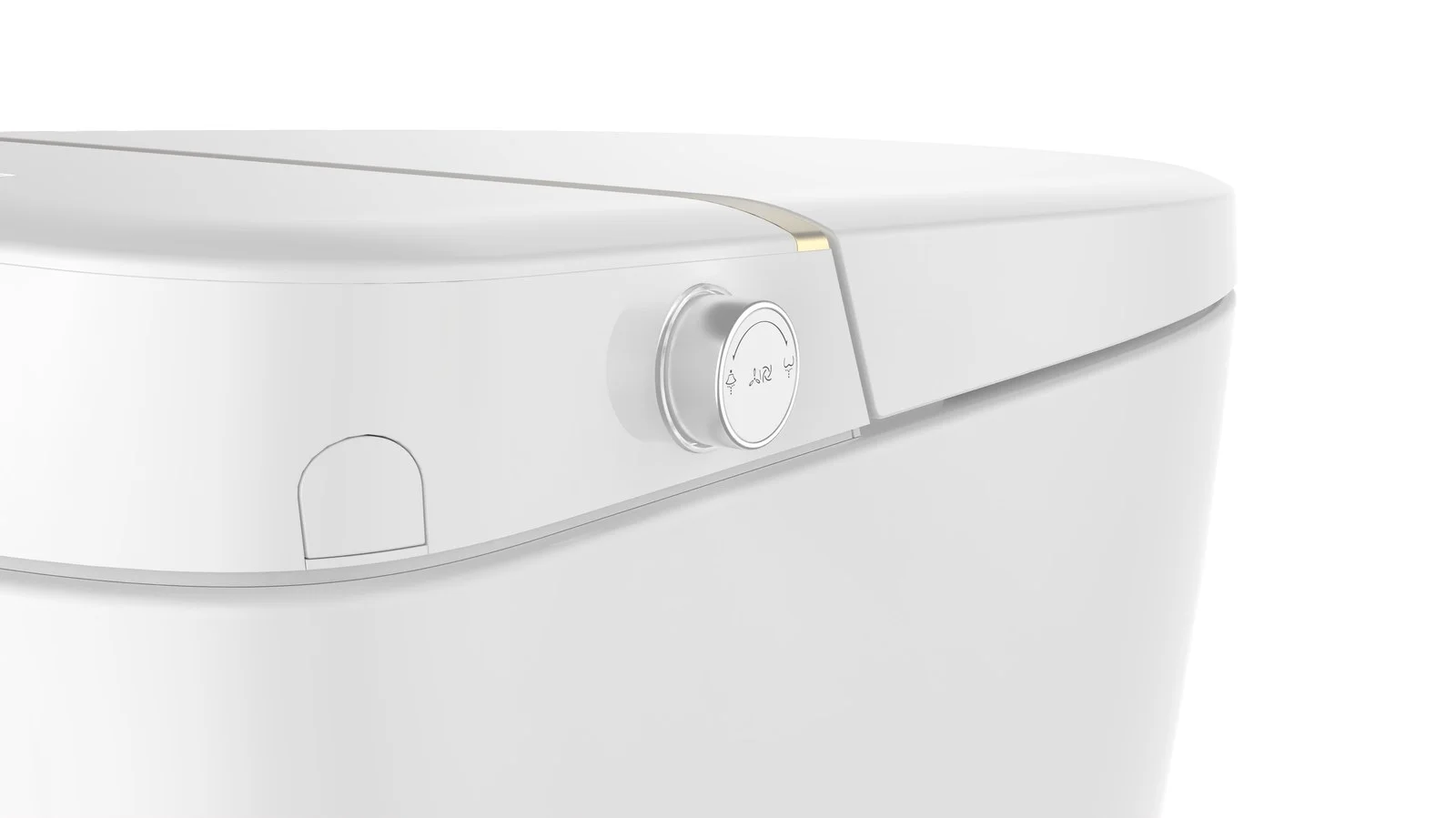

Side knob + remote control
Dual control path: side knob for flush and basic functions, remote for wash position, water flow, temperature and personal settings.
Planning data
Technical specifications
Confirm destination-market requirements and the final approved configuration before ordering.
| Dimensions (W × D × H) | 680 × 390 × 460 mm (26.8 × 15.4 × 18.1 in) |
|---|---|
| Package dimensions | 825 × 585 × 575 mm |
| Shape | U-shaped |
| Mounting type | Floor-mounted |
| Rough-in | 305 mm / 12 in |
| Voltage range | 100–130V AC, 50/60 Hz |
| Rated power | 1100 W |
| Maximum power | 1600 W |
| Flush type | Siphon jet |
| Flush controls | Automatic / Remote control / Foot sensor |
| Maximum flush volume | 4.8 L / 1.27 GPF |
| Minimum flush volume | 4.0 L / 1.06 GPF |
| Water supply pressure | 0.15 – 0.75 MPa (static) |
| Material | ABS-V0 / PP-V0 / PC-V0 |
| Waterproof rating | IPX4 |
| Sound level | ≤ 65 dB |
| Air flow capacity | ≥ 0.20 m³/min |
| Water temperature range | Approx. 68–107 °F (4 levels) |
| Seat temperature | Approx. 89–134 °F (3 levels) |
| Warm air temperature | 4 levels, up to approx. 107 °F |
| Light source | LED night light |
| Deodorization | Activated carbon |
| Nozzle | Stainless steel, self-cleaning, antibacterial |
| Net weight | 39.5 kg / 87.1 lb |
| Gross weight | 44.5 kg / 98.1 lb |
| Power cord length | Approx. 1.2 m / 48 in |
| Inlet valve diameter | G3/4, G1/2 |
| Spud inlet diameter | G1/2 |
| Included components | Sealing ring, inlet valve, remote control + holder, screws, adhesive tape |
| Certifications | CUPC (2022), UL (E527307), FCC ID |
Function set
Comfort functions
Included functions are separated from configuration-dependent options.
Documented as included
- Foot sensor
- Heated seat
- Warm-air drying
Technical library
Document centre
Download the available A17 product files.
Evidence boundary
Documentation you can review before approval
Product details reflect the available model record. Confirm final configuration, certificates and market applicability with the supply team.
