Smart Toilet / Model A18

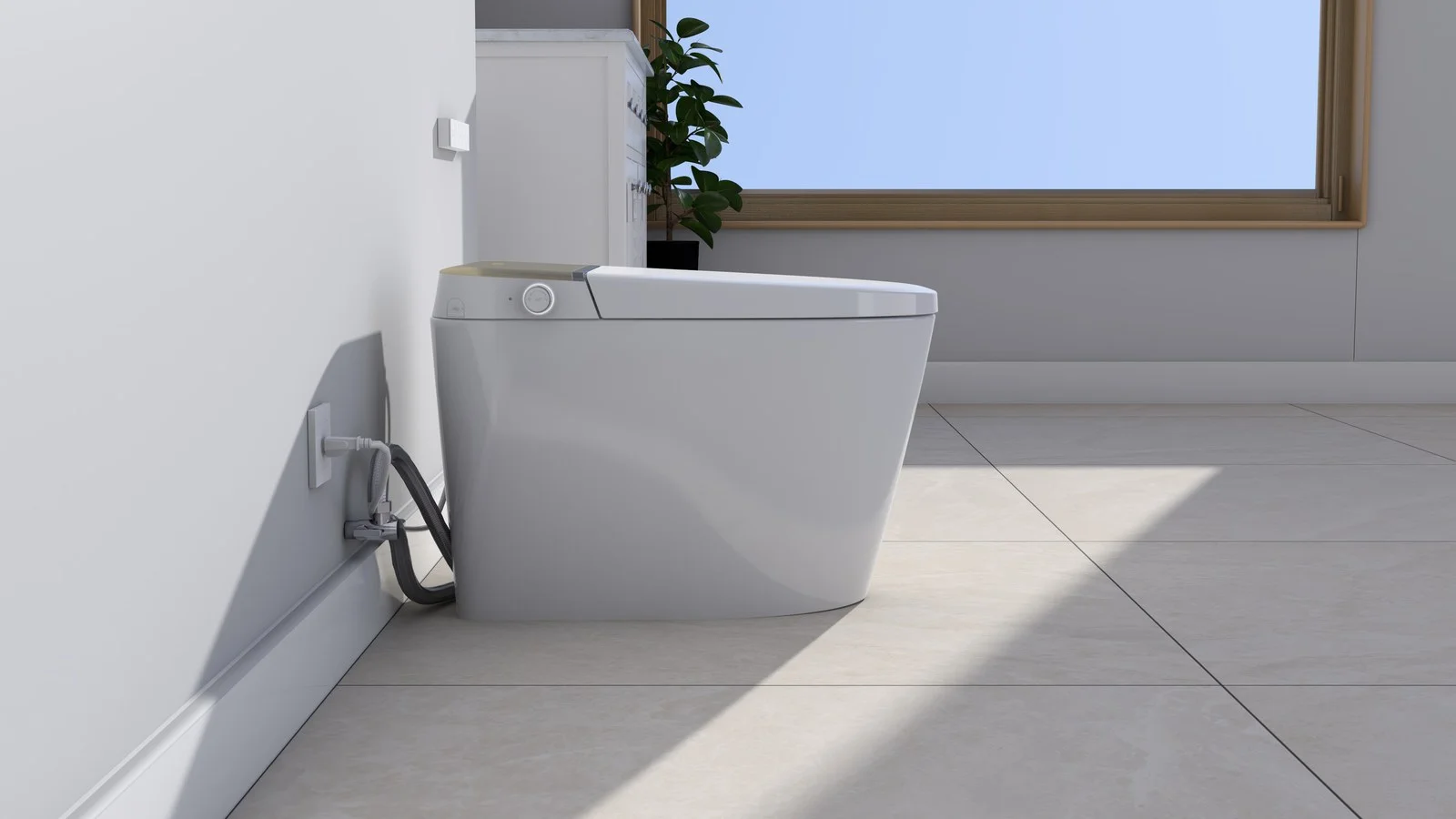

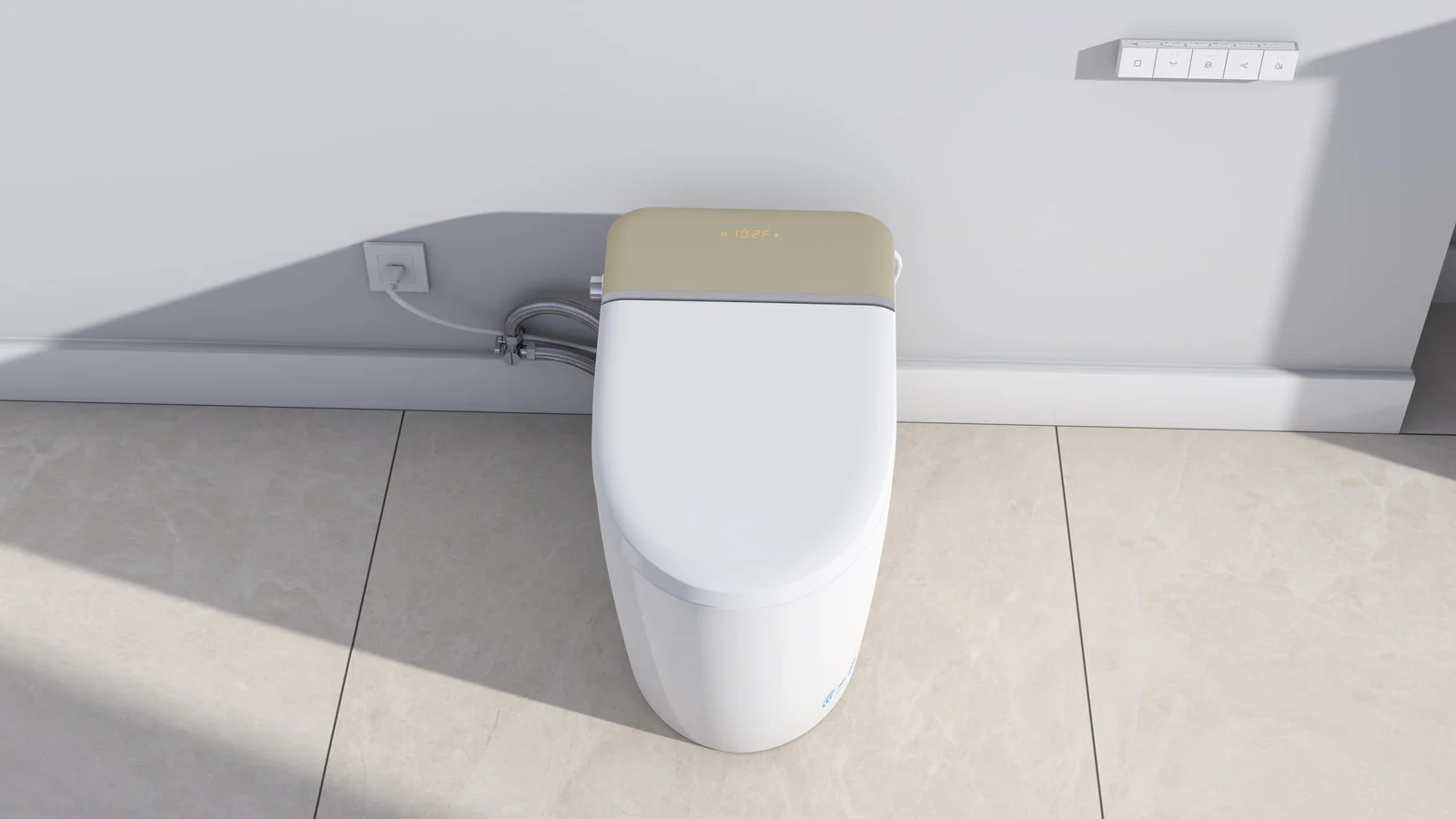

A18 Integrated Smart Toilet
A17 sibling with microwave-sensing auto lid and foot-sensor operation — adds hands-free open/close for hospitality and premium residential use.
- Voltage
- 110–130V
- Controls
- Remote control, Side knob
- Rough-in / fit
- 305 mm
- Dimensions
- 680 × 390 × 460 mm
- 4.8 L maximum flush
- 39.5 kg net weight
- Auto open/close lid + foot sensor
Product overview
Built for informed sourcing
The A18 shares the U-shaped ceramic body and footprint of the A17 and adds automatic lid operation via microwave sensing and foot-sensor control. The lid and seat open automatically as the user approaches, and close after roughly 2 minutes — suited to hospitality guestrooms and premium residential bathrooms that prioritise touch-free use.
A 110–130V / 50–60Hz configuration, 305 mm (12 in) rough-in and 4.8 L (1.27 GPF) maximum flush keep the A18 on the same installation and compliance track as the A17, so buyers can run both models inside one product range. The full comfort function set — heated seat, warm-air drying, instant heating, deodorization and LED night light — is documented.
The A18 ships with a sealing ring, inlet valve and remote control with holder. Compliance documentation is confirmed under the A17 certification family (CUPC, UL, FCC ID) — request the certificate pack for import and inspection approval.
Engineering details
Features & engineering
Review the documented design, control and comfort details for this configuration.

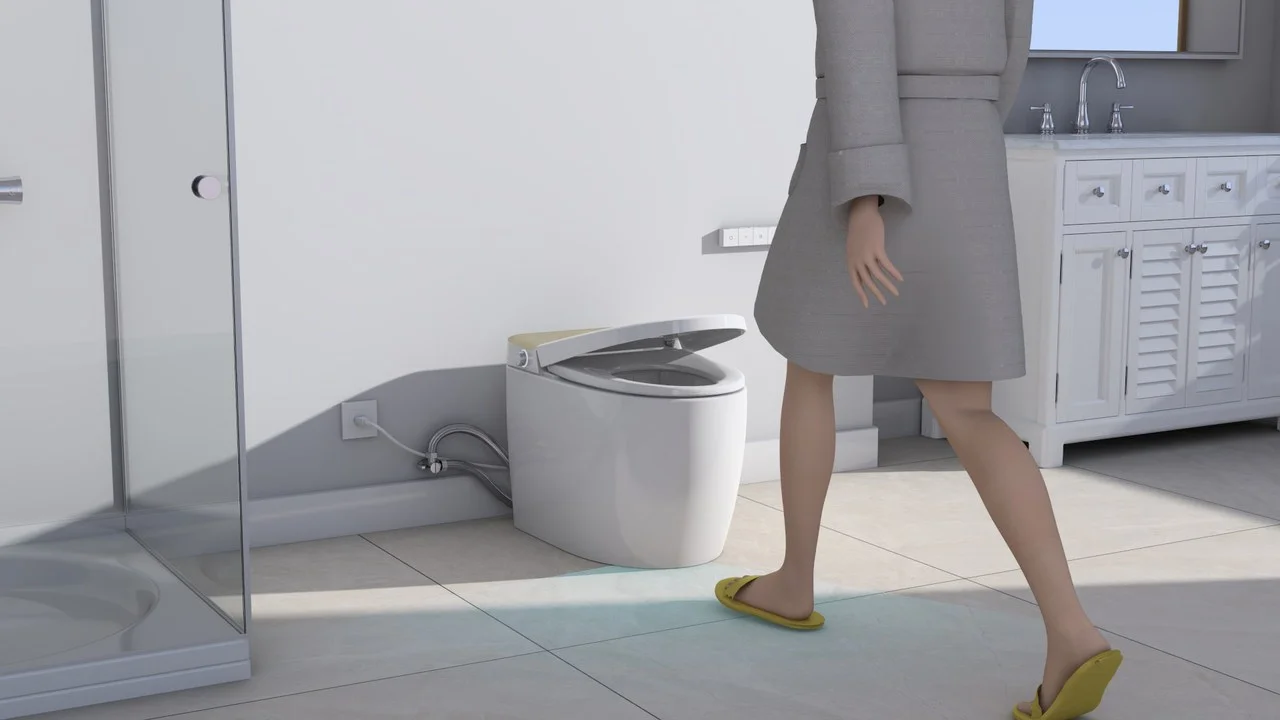

Microwave-sensing auto lid
Lid and seat open automatically as the user approaches, and close after roughly 2 minutes. Also controllable via remote or foot sensor.

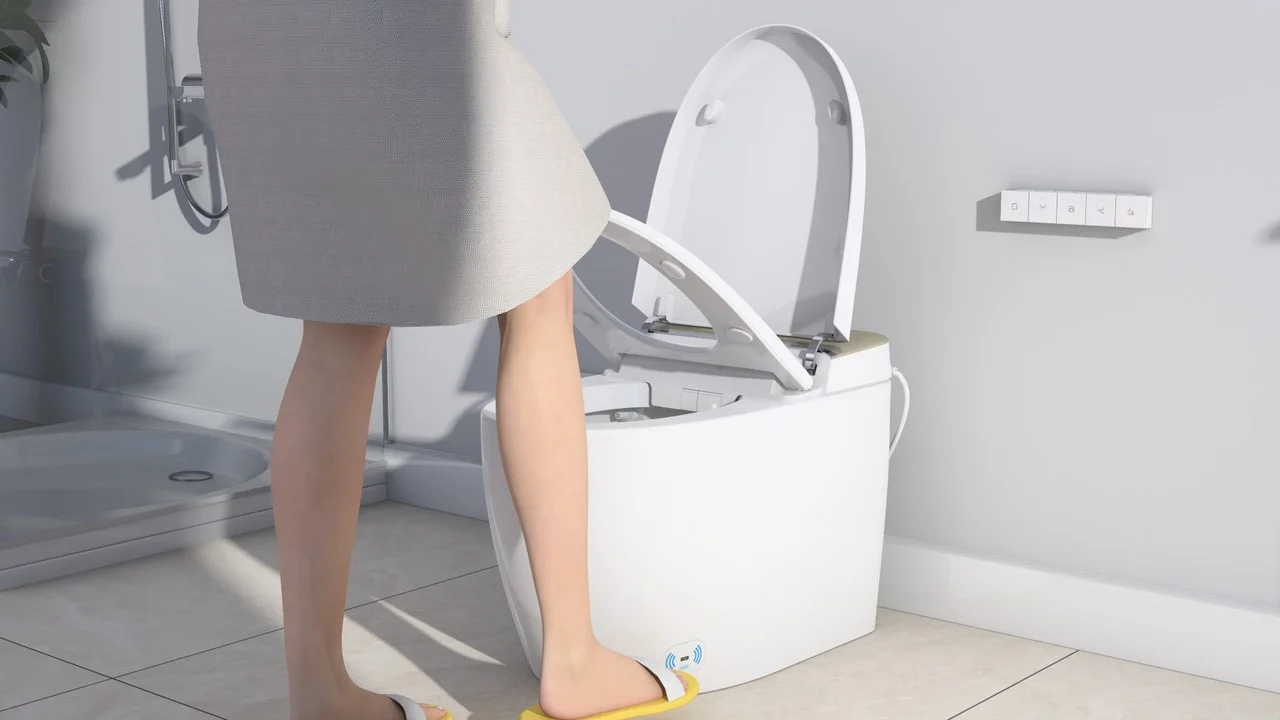

Foot-sensor operation
Touch the foot sensor to open the lid, open the seat, or trigger a flush — full hands-free operation for hygiene-led use.

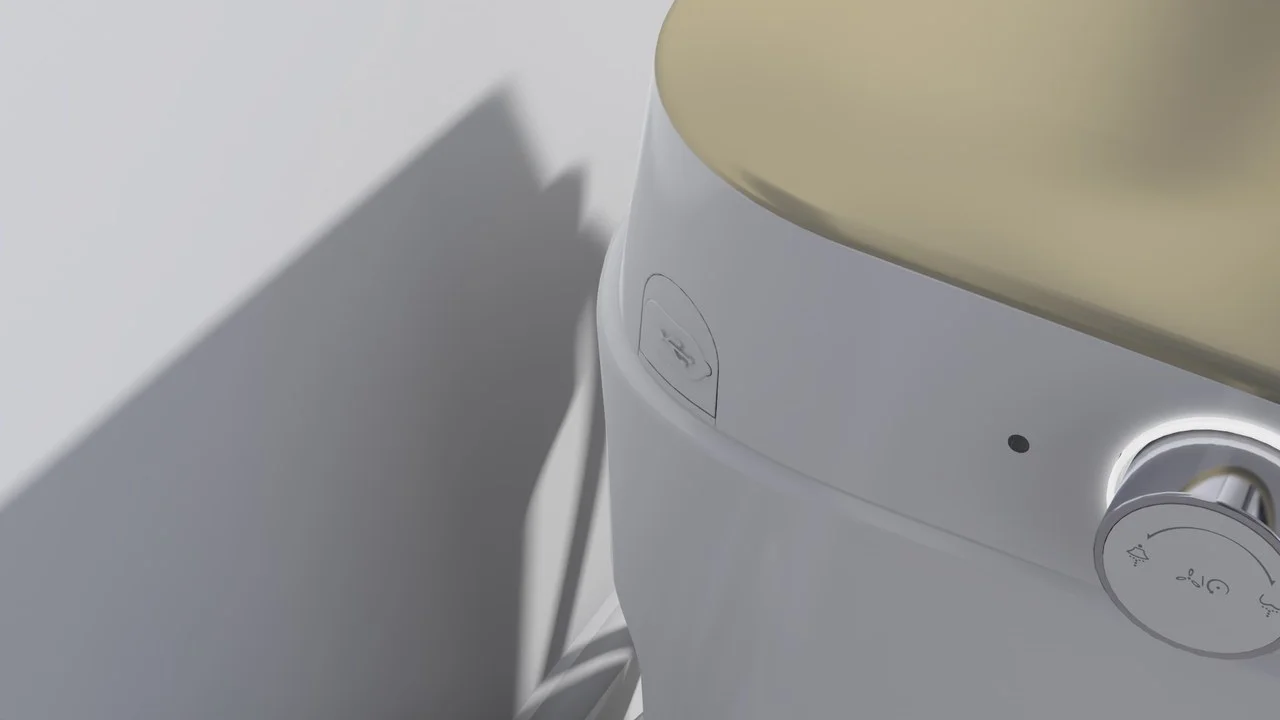

Siphon jet TPC flushing
Siphon jet flush with TPC pre-wetting — 4.8 L / 1.27 GPF max, configurable down to 4.0 L / 1.06 GPF. Automatic, remote and foot-sensor flush paths.

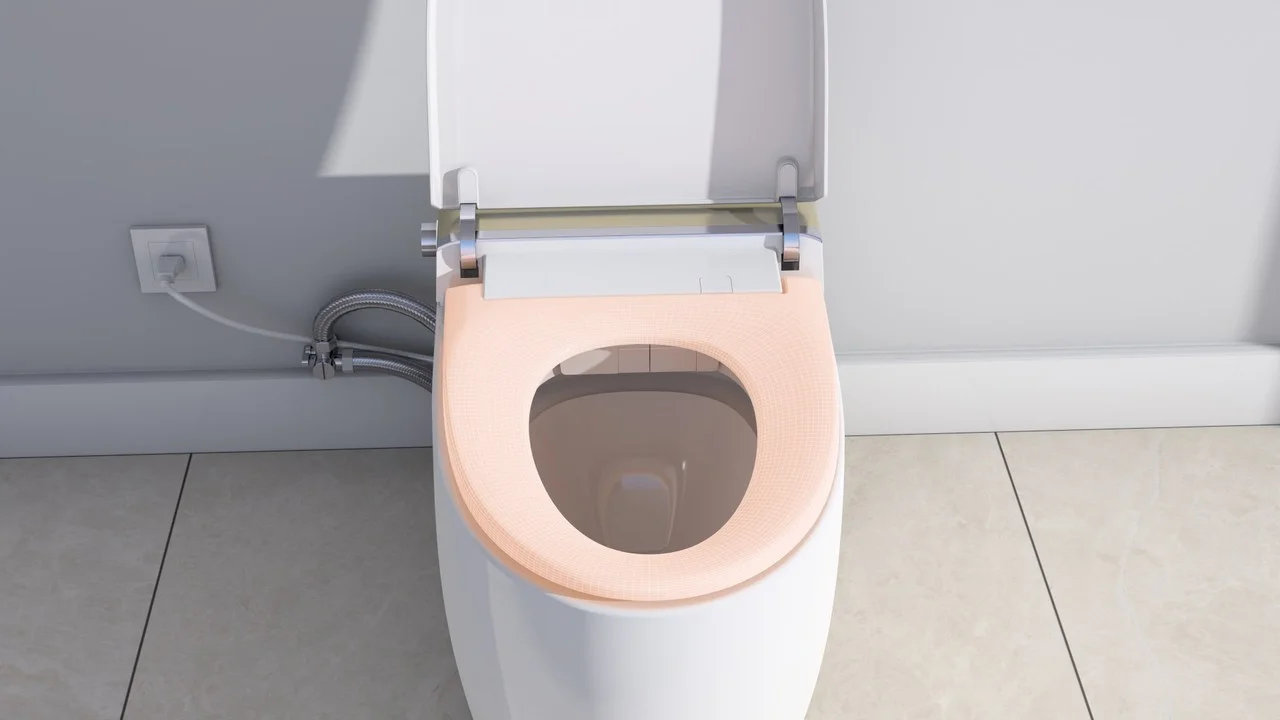

Heated seat with anti-scald
Seat heats and holds temperature, then automatically lowers after 15 minutes seated to prevent low-temperature scalding. 3-level adjustment.

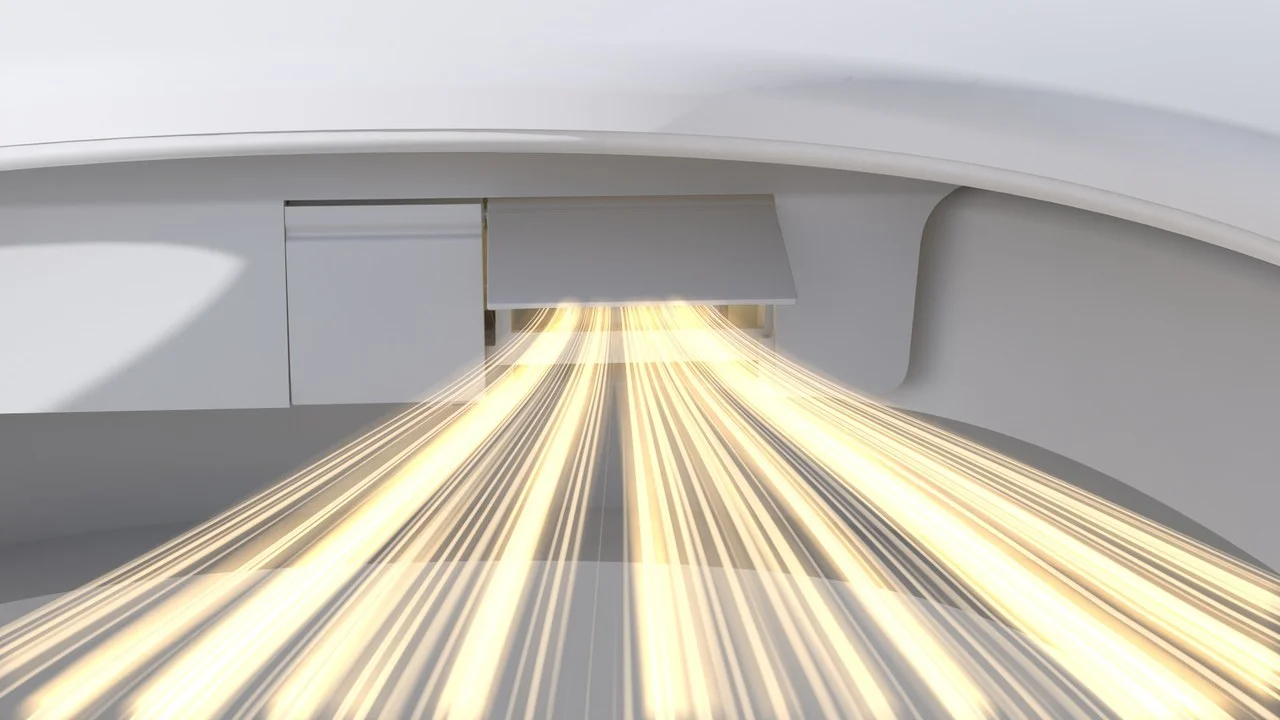

Warm-air drying & deodorization
Adjustable warm-air drying (4 levels) plus activated-carbon auto-deodorization after seated.

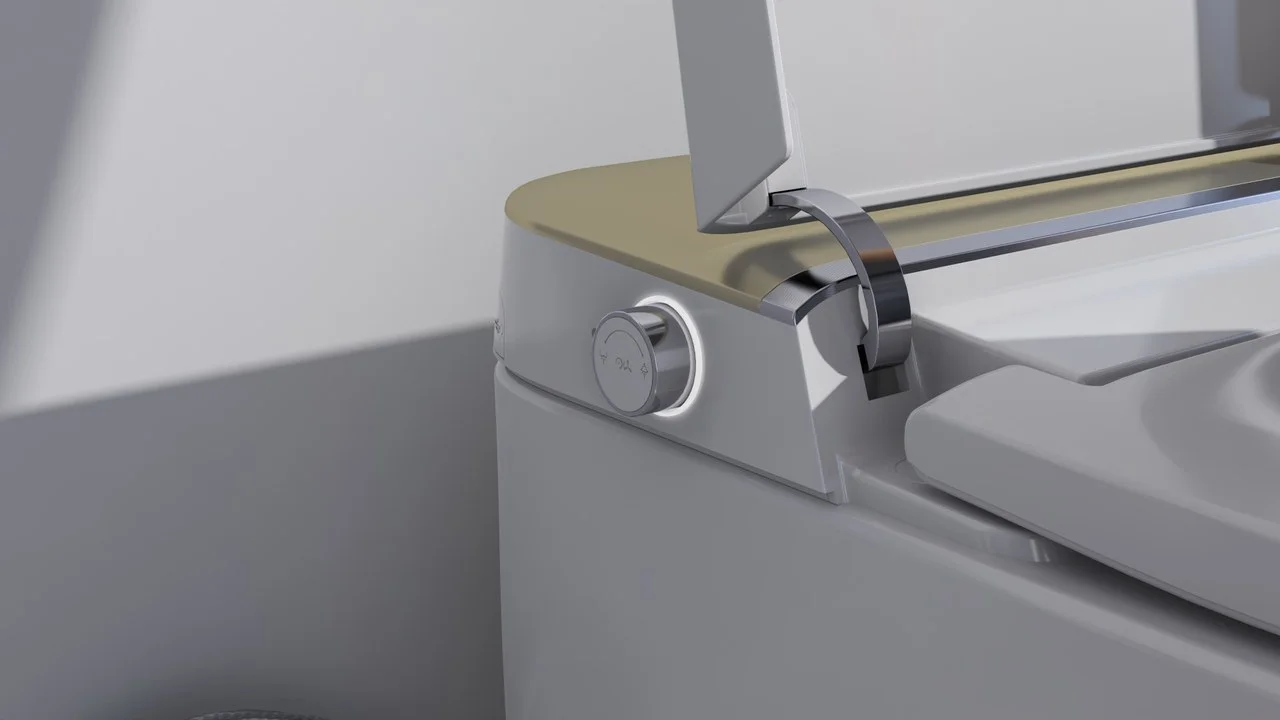

Ceramic UVC + side knob
Ceramic UVC self-cleaning and antibacterial stainless steel nozzle. Side knob plus remote for dual control path.
Planning data
Technical specifications
Confirm destination-market requirements and the final approved configuration before ordering.
| Dimensions (W × D × H) | 680 × 390 × 460 mm (26.8 × 15.4 × 18.1 in) |
|---|---|
| Package dimensions | 825 × 585 × 575 mm (32 × 23 × 22 in) |
| Shape | U-shaped |
| Mounting type | Floor-mounted |
| Rough-in | 305 mm / 12 in |
| Voltage range | 100–130V AC, 50/60 Hz |
| Rated power | 1100 W |
| Maximum power | 1600 W |
| Flush type | Siphon jet |
| Flush controls | Automatic / Remote control / Foot sensor |
| Maximum flush volume | 4.8 L / 1.27 GPF |
| Minimum flush volume | 4.0 L / 1.06 GPF |
| Water supply pressure | 0.15 – 0.75 MPa (static) |
| Material | ABS-V0 / PP-V0 / PC-V0 |
| Waterproof rating | IPX4 |
| Sound level | ≤ 65 dB |
| Air flow capacity | ≥ 0.20 m³/min |
| Auto lid | Microwave sensing — auto open on approach, auto close after ~2 min |
| Foot sensor | Touch to open lid, open seat, or flush |
| Water temperature range | Approx. 68–107 °F (4 levels) |
| Seat temperature | Approx. 89–134 °F (3 levels) |
| Warm air temperature | 4 levels, up to approx. 107 °F |
| Light source | LED night light |
| Deodorization | Activated carbon |
| Nozzle | Stainless steel, self-cleaning, antibacterial |
| Net weight | 39.5 kg / 87.1 lb |
| Gross weight | 44.5 kg / 98.1 lb |
| Power cord length | Approx. 1.2 m / 48 in |
| Inlet valve diameter | G3/4, G1/2 |
| Spud inlet diameter | G1/2 |
| Included components | Sealing ring, inlet valve, remote control + holder, screws, adhesive tape |
| Certifications | CUPC (2022), UL (E527307), FCC ID (under A17 family) |
Function set
Comfort functions
Included functions are separated from configuration-dependent options.
Documented as included
- Auto lid
- Foot sensor
- Heated seat
- Warm-air drying
Technical library
Document centre
Download the available A18 product files.
Evidence boundary
Documentation you can review before approval
Product details reflect the available model record. Confirm final configuration, certificates and market applicability with the supply team.
- Procurement checkFinal approval required before order
